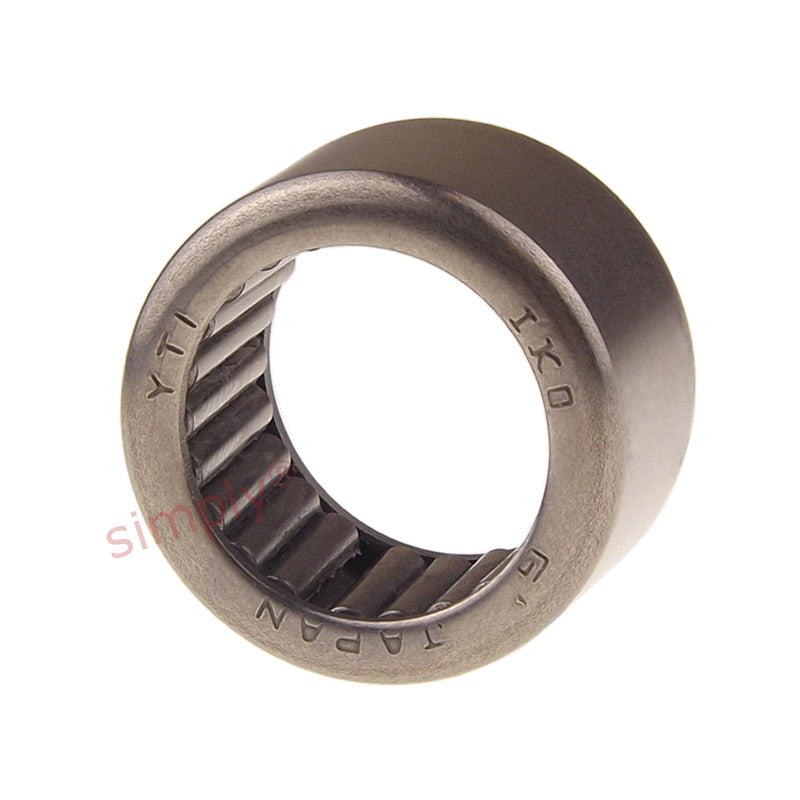

• IKO YT2520 Drawn Cup Open End Type Full Complement Needle Roller Bearing 25x33x20mm
1 1

SKU: YT.2520

IKO YT2520 Drawn Cup Open End Type Full Complement Needle Roller Bearing 25x33x20mm

IKO YT2520 Drawn Cup Open End Type Full Complement Needle Roller Bearing 25x33x20mm
£10.60 ex VAT£12.72inc. VAT
£10.60 ex VAT£12.72 inc. VAT
Sale Sold out

In stock

Price Break
10+ £9.43
19+ £8.90
29+ £8.80
39+ £8.69
49+ £8.59
74+ £8.48
99+ £7.95
199+ £7.84
249+ £7.74
499+ £7.63
999+ £7.42
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

YT and YTL Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs.
Brand / Quality:
IKO - High Quality
Inside Diameter:
25mm
Outside Diameter:
33mm
Width:
20mm
Technical
Fw 25mm
D 33mm
C 20mm
Dynamic load 30200 N
Static load 55400 N
Inner ring IRT2020-1
Weight 45 g
