SKU: YAT210-SKF

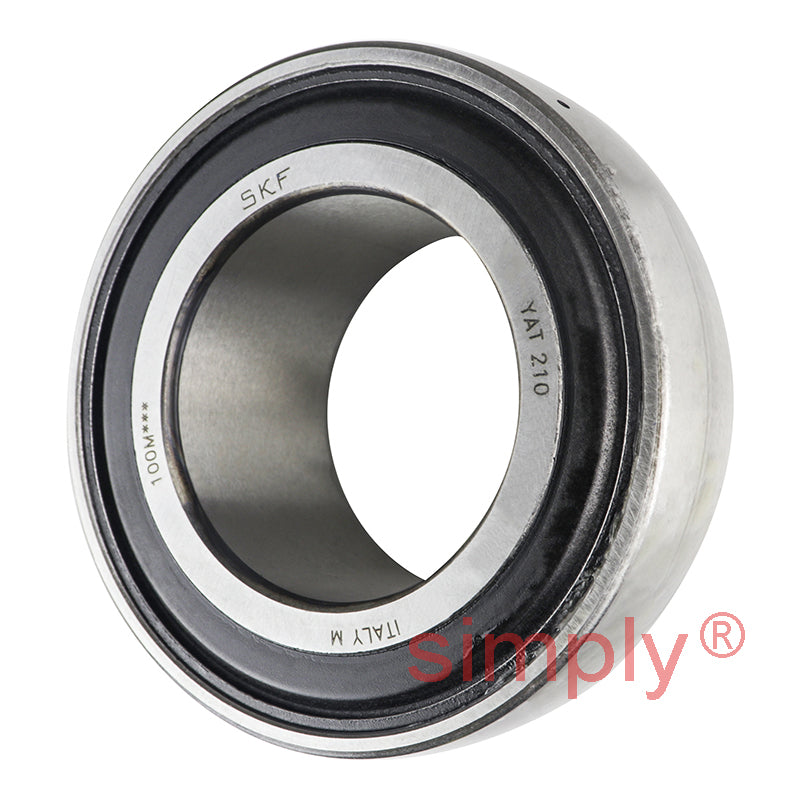

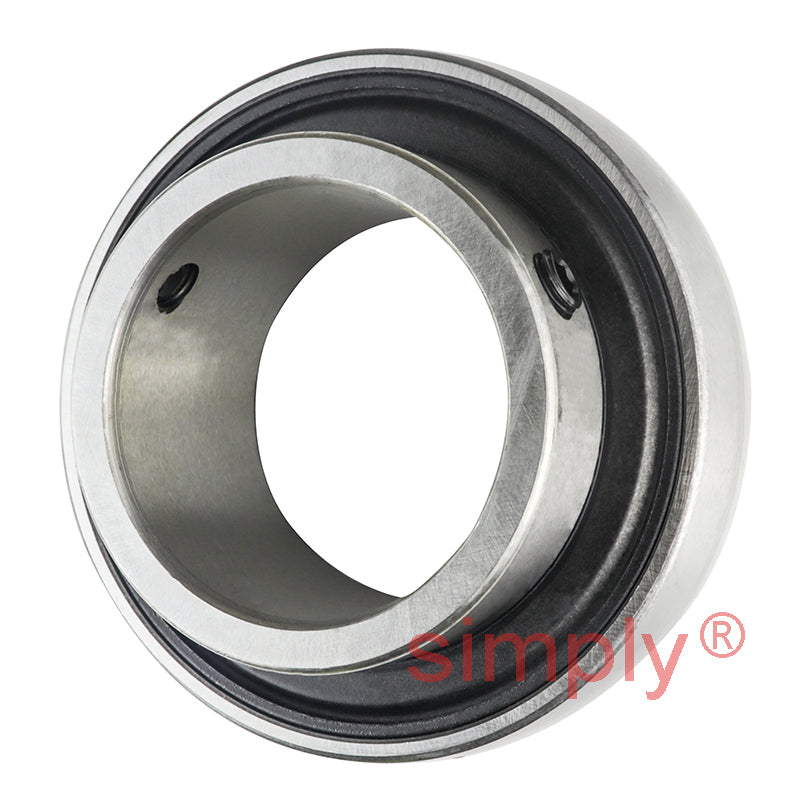

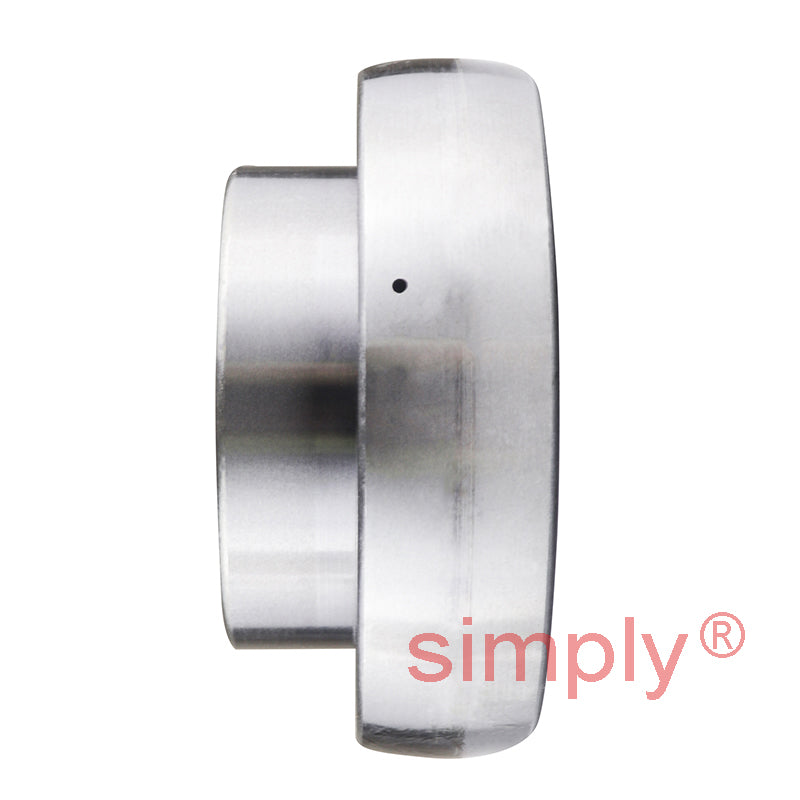

SKF YAT210 Grub Screw Type Bearing Insert with 50mm Bore 90mm Outside Diameter
SKF YAT210 Grub Screw Type Bearing Insert with 50mm Bore 90mm Outside Diameter
Regular price
£44.51
ex VAT£53.41inc. VAT
Regular price
Sale price
£44.51
ex VAT£53.41
inc. VAT
In stock
Price Break
10+
£39.62
20+
£37.39
30+
£36.95
40+
£36.50
50+
£36.06
75+
£35.61
100+
£33.39
200+
£32.94
250+
£32.49
500+
£32.05
1000+
£31.16
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Style:
- YAT
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B | 38.8mm |
| C | 22mm |
| d1 | 62.5mm |
| s1 | 27.6mm |
| r1r2 min | 1mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 9.54 kg |
