SKU: YAT205-SKF

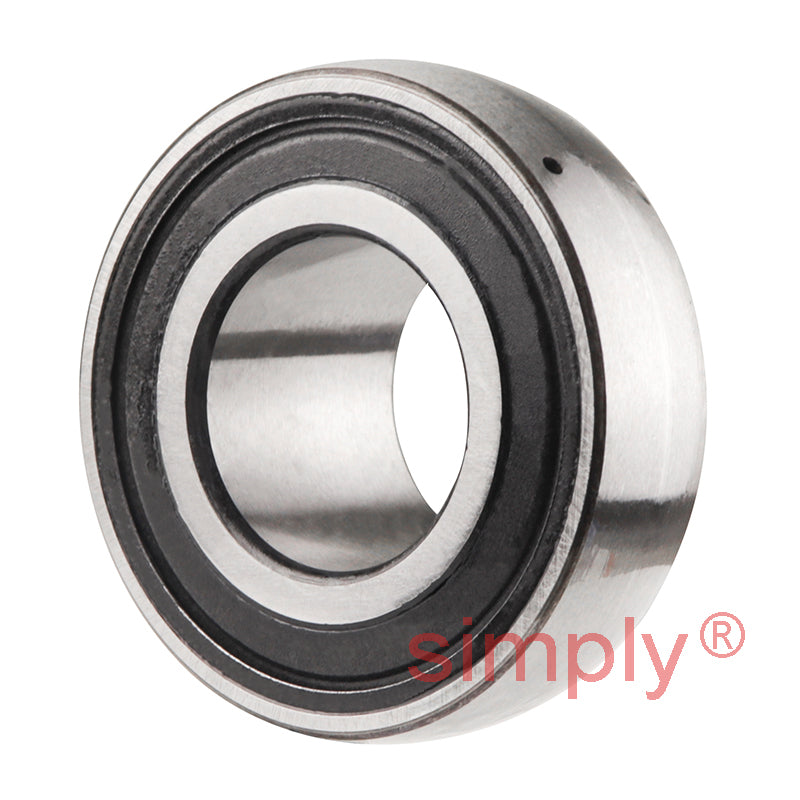

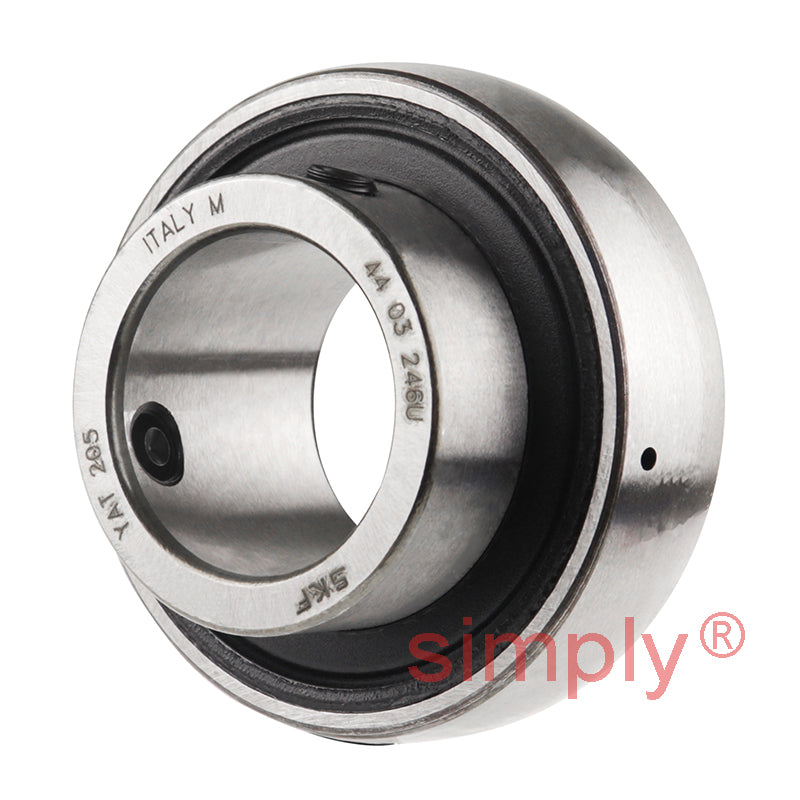

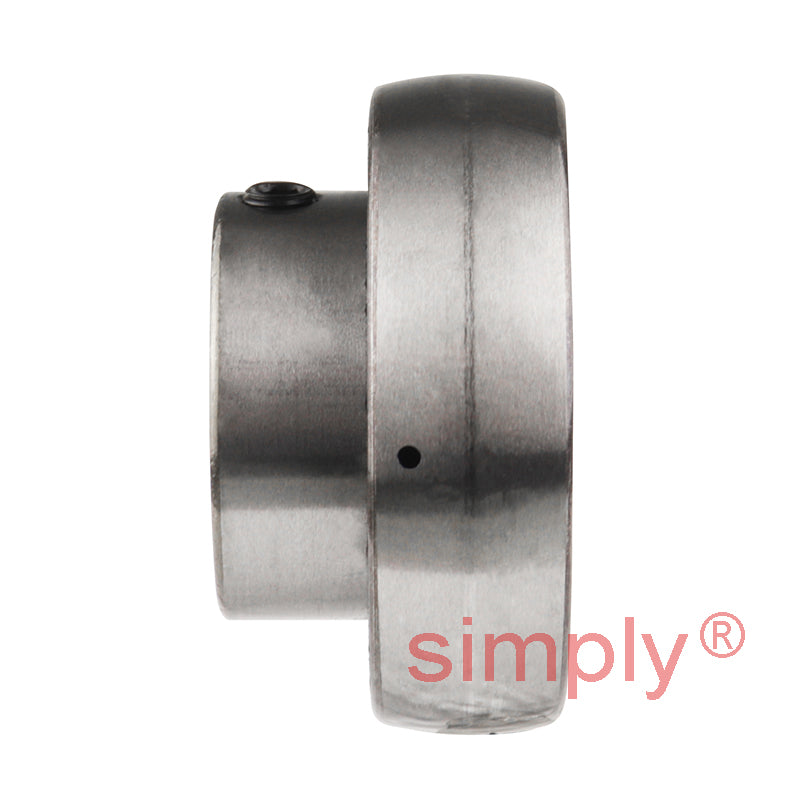

SKF YAT205 Grub Screw Type Bearing Insert with 25mm Bore 52mm Outside Diameter
SKF YAT205 Grub Screw Type Bearing Insert with 25mm Bore 52mm Outside Diameter
Regular price
£16.77
ex VAT£20.12inc. VAT
Regular price
Sale price
£16.77
ex VAT£20.12
inc. VAT
In stock
Price Break
10+
£14.92
20+
£14.09
30+
£13.92
40+
£13.75
50+
£13.58
75+
£13.42
100+
£12.58
200+
£12.41
250+
£12.24
500+
£12.07
1000+
£11.74
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Style:
- YAT
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 27.2mm |
| C | 15mm |
| d1 | 33.7mm |
| s1 | 19.5mm |
| r1r2 min | 0.6mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.14 kg |
