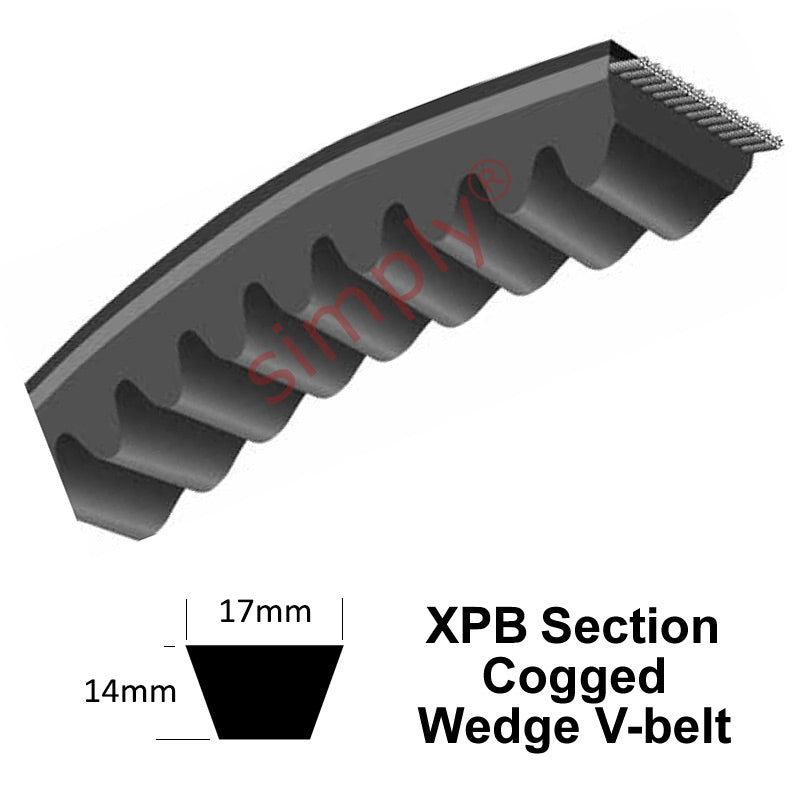

XPB1700 Pix XPB-Section Muscle 3 Cogged V-Belt

PIX XR3 Muscle V-Belt: PIX Muscle belts have an extremely high power rating - up to 40% more than regular v-belts. The belt complies with antistatic ISO 1813 standards and provides an Eco-friendly system. High-power, maintenance-free v-belt designed with high tensile strength resistant to elongation and breakage. Longer service life to reduce costs and less down-time. Extended temperature range from -35 Degrees Celsius to +135 Degrees Celsius.
Benefits: Superior oil & heat resistance
Note: Matched Pairs: All V Belts conform to DIN 2215 (For Classic V Belts Z, A, B, C, D, etc) and DIN 7753 (For Wedge Type Belts SPZ, SPA, SPB etc) and ISO 4184 and as such will match taking into account dimensional tolerances. If you require belts from the same batch, please contact our Sales Support Team who will gladly assist you further.

Brand / Quality:

Pix - High Quality

Belt Number:

XPB1700

Inside Length Approx:

1660mm

Outside Length Approx:

1728mm

Belt Width Approx:

17mm

Belt Depth Approx:

14mm

Belt Datum Length Approx:

1700mm
