SKU: WSZC16-JCS

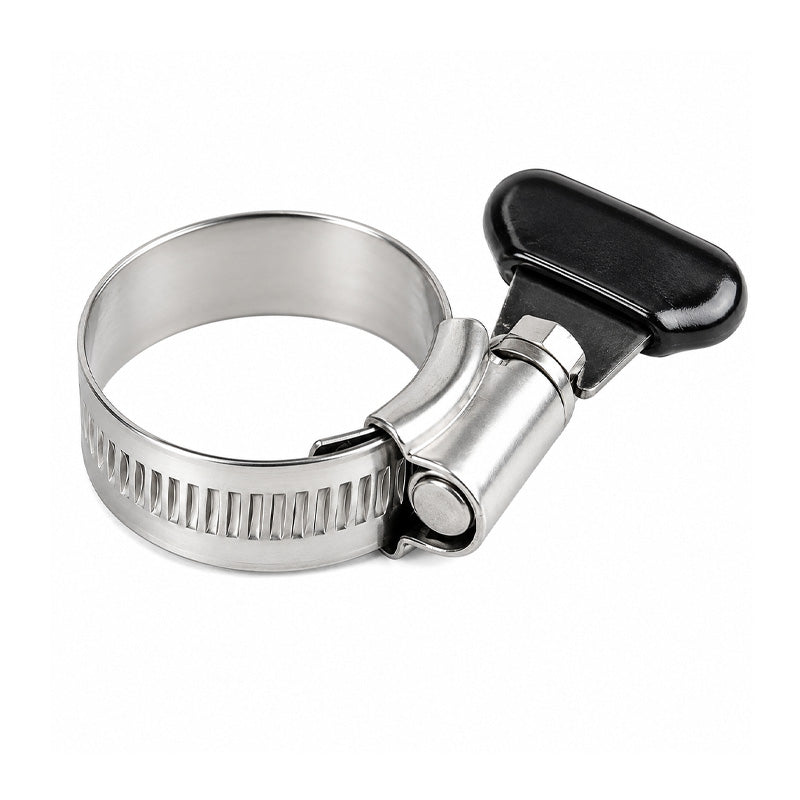

JCS WSZC16 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 11-16mm Band Width 9mm
JCS WSZC16 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 11-16mm Band Width 9mm
Regular price
£4.47
ex VAT£5.36inc. VAT
Regular price
Sale price
£4.47
ex VAT£5.36
inc. VAT
In stock
Price Break
3+
£3.97
5+
£3.75
9+
£3.71
19+
£3.66
49+
£3.62
74+
£3.57
99+
£3.35
199+
£3.30
249+
£3.26
499+
£3.22
999+
£3.13
Share this product
Description
Description
Zinc Plated Steel Hi-Grip Wing Screw: Specifically designed for frequently removed hoses, the unique dovetail locking and side lugs of the wing plate ensure excellent sealing and longevity. Used for a wide variety of domestic, automotive and industrial applications, the standard Hi-Grip hose clip is made from mild steel, electroplated, passivated and tested to EN9227. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse.
- Brand / Quality:
- JCS - High Quality
- Width:
- 9mm
- Min Adjustment Range:
- 11mm
- Max Adjustment Range:
- 16mm
Technical
Technical
| BS No. | 16 |
|---|---|
| Adjustment Range (mm) | 11-16mm |
| Adjustment Range (inch) | 1/2 - 5/8 inch |
| A | 7mm |
| B | 31mm |
| C | 10mm |
| D | 12mm |
| E | 9mm |
| F | 0.7mm |
| G | 24mm |
| Recommended Torque Nm | 3Nm |
| Recommended Torque lb-in | 26lb-in |
