SKU: WMO-4050-25
WMO405025 Plain Oilless Bronze Bush 40x50x25mm - Allow 2-3 Days
WMO405025 Plain Oilless Bronze Bush 40x50x25mm - Allow 2-3 Days
Regular price
£17.72
ex VAT£21.26inc. VAT
Regular price
Sale price
£17.72
ex VAT£21.26
inc. VAT
Equivalent to: WMO405025
In stock
Price Break
3+
£17.54
5+
£16.83
9+
£16.48
19+
£15.95
49+
£15.59
74+
£14.71
99+
£12.40
199+
£0.00
249+
£0.00
499+
£0.00
999+
£0.00
Description
Description

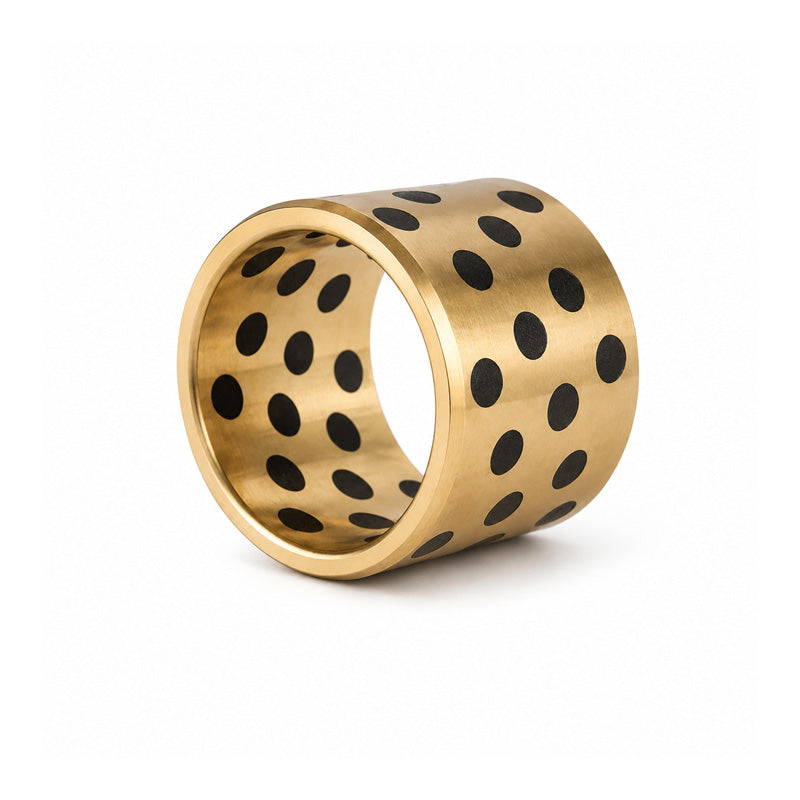

Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Equivalent: WMO405025
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 50mm
- Length:
- 25mm
- Item Type:
- Plain
Technical
Technical
| d | 40mm |
|---|---|
| D | 50mm |
| L | 25mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 119.366 rpm |
| Max load | 10193.68 kg |
| Housing Tolerance | H7 |
