SKU: WMO-0812-08

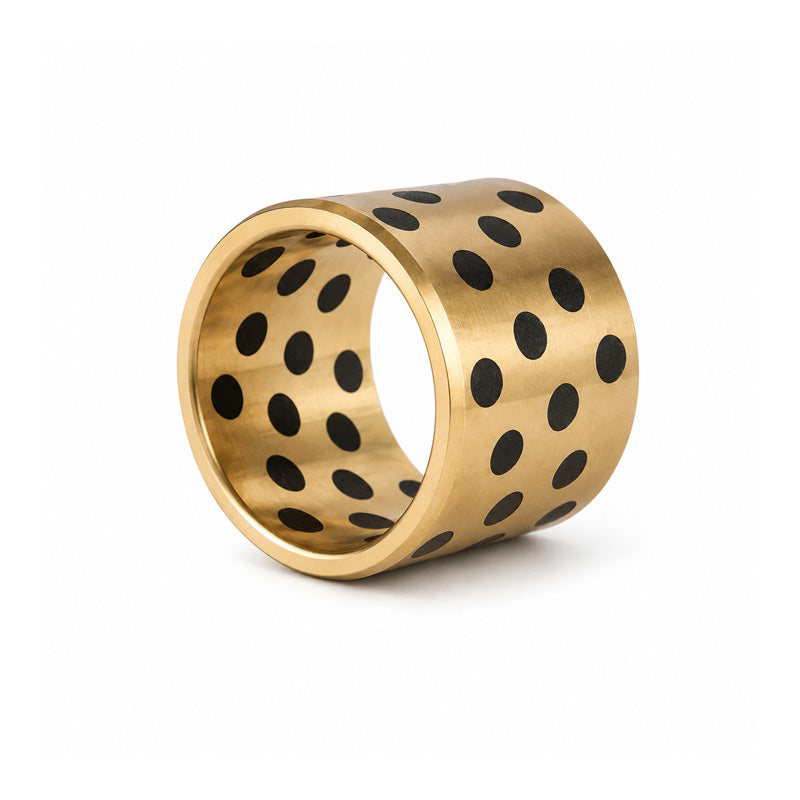

WMO081208 Plain Oilless Bronze Bush 8x12x8mm
WMO081208 Plain Oilless Bronze Bush 8x12x8mm
Regular price
£10.90
ex VAT£13.08inc. VAT
Regular price
Sale price
£10.90
ex VAT£13.08
inc. VAT
Equivalent to: WMO081208
In stock
Price Break
3+
£9.70
5+
£9.15
9+
£9.04
19+
£8.94
49+
£8.83
74+
£8.72
99+
£8.17
199+
£8.06
249+
£7.96
499+
£7.85
999+
£7.63
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Equivalent: WMO081208
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 12mm
- Length:
- 8mm
- Item Type:
- Plain
Technical
Technical
| d | 8mm |
|---|---|
| D | 12mm |
| L | 8mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 596.831 rpm |
| Max load | 652.396 kg |
| Housing Tolerance | H7 |
