SKU: WMG50-SKF

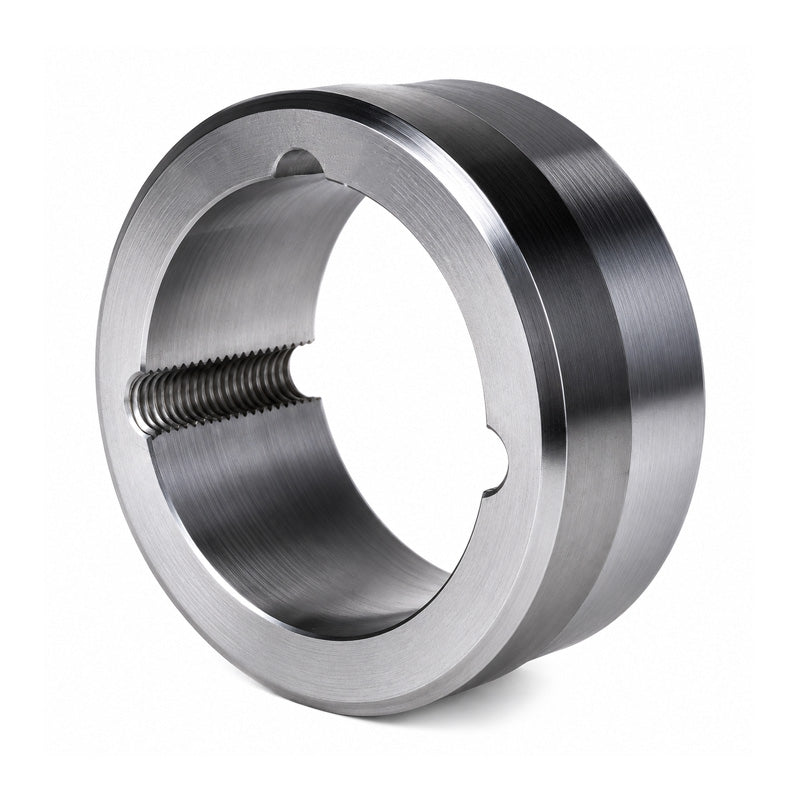

SKF WMG50 Weld on Hub Shaft Fixing with Tapered Bore
SKF WMG50 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
£241.81
ex VAT£290.17inc. VAT
Regular price
Sale price
£241.81
ex VAT£290.17
inc. VAT
In stock
Price Break
10+
£215.21
19+
£203.12
29+
£200.70
39+
£198.28
49+
£195.87
74+
£193.45
99+
£181.36
199+
£178.94
249+
£176.52
499+
£174.10
999+
£169.27
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 5050
- Outside Diameter:
- 276mm
- Width:
- 127mm
Technical
Technical
| Hub Reference | WMG50 |
|---|---|
| Bush Number | 5050 |
| A | 276mm |
| B | 242mm |
| C | 228mm |
| D | 127mm |
| E | 38mm |
| F | 38mm |
| F1 | 42mm |
| X | 42mm |
