SKU: WMG16-1-SKF

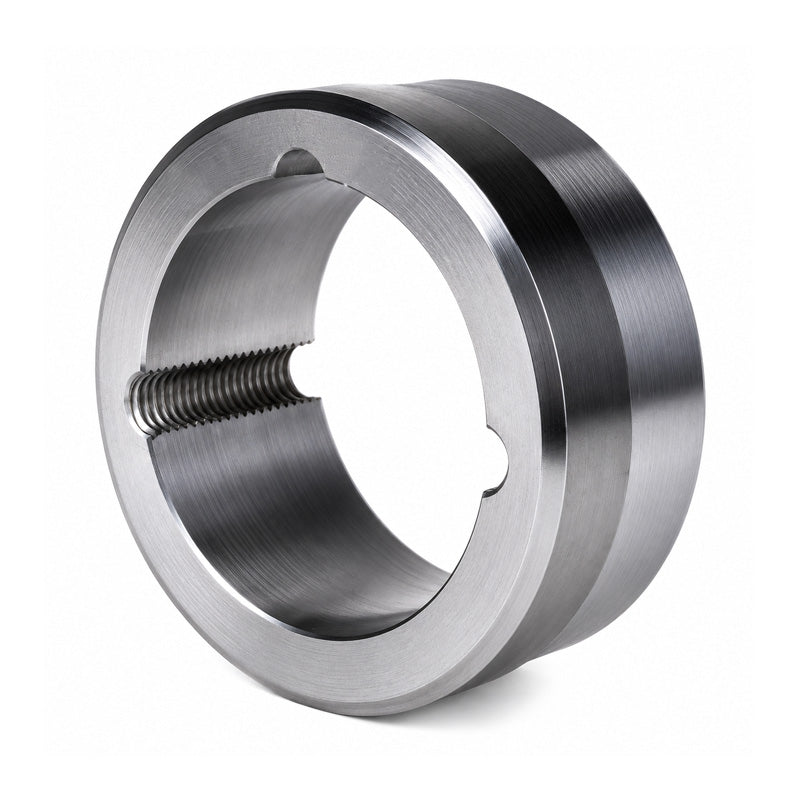

SKF WMG16-1 Weld on Hub Shaft Fixing with Tapered Bore
SKF WMG16-1 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
£14.53
ex VAT£17.44inc. VAT
Regular price
Sale price
£14.53
ex VAT£17.44
inc. VAT
In stock
Price Break
10+
£12.93
19+
£12.21
29+
£12.06
39+
£11.91
49+
£11.77
74+
£11.62
99+
£10.90
199+
£10.75
249+
£10.61
499+
£10.46
999+
£10.17
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 1610
- Outside Diameter:
- 83mm
- Width:
- 26mm
Technical
Technical
| Hub Reference | WMG16-1 |
|---|---|
| Bush Number | 1610 |
| A | 83mm |
| B | 70mm |
| C | 68mm |
| D | 26mm |
| E | 9mm |
| F | 10mm |
| F1 | 9mm |
| X | 9mm |
