SKU: WHG45-2-SKF

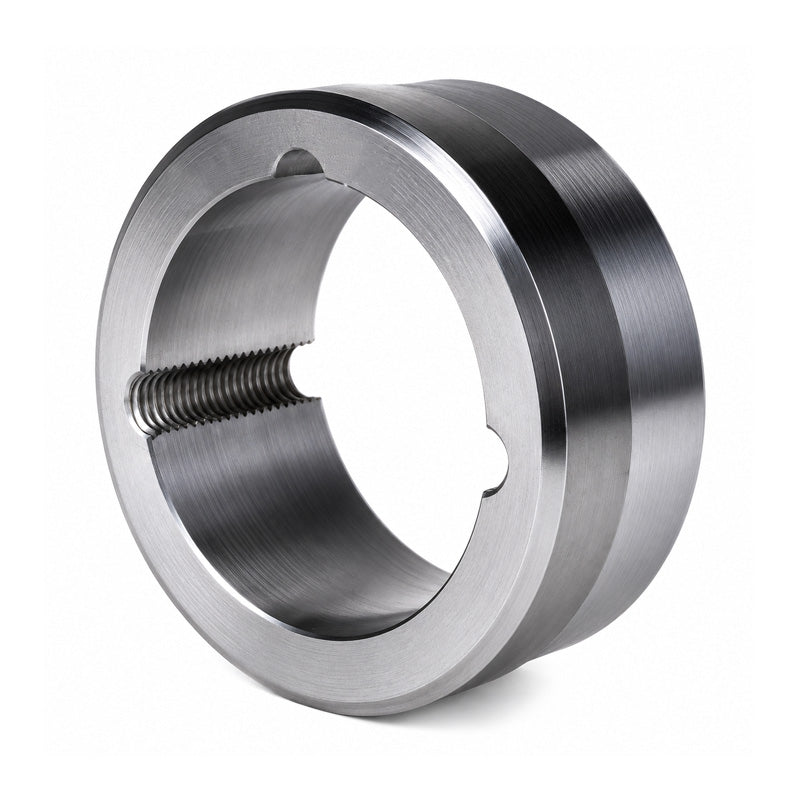

SKF WHG45-2 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG45-2 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
£131.05
ex VAT£157.26inc. VAT
Regular price
Sale price
£131.05
ex VAT£157.26
inc. VAT
In stock
Price Break
10+
£116.63
19+
£110.08
29+
£108.77
39+
£107.46
49+
£106.15
74+
£104.84
99+
£98.29
199+
£96.98
249+
£95.67
499+
£94.36
999+
£91.74
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 4545
- Outside Diameter:
- 210mm
- Width:
- 114mm
Technical
Technical
| Hub Reference | WHG45-2 |
|---|---|
| Bush Number | 4545 |
| A | 210mm |
| B | 200mm |
| C | 199.5mm |
| D | 114mm |
| E | 40mm |
| F | 30mm |
| F1 | 38mm |
| X | 38mm |
