SKU: WHG40-1-SKF

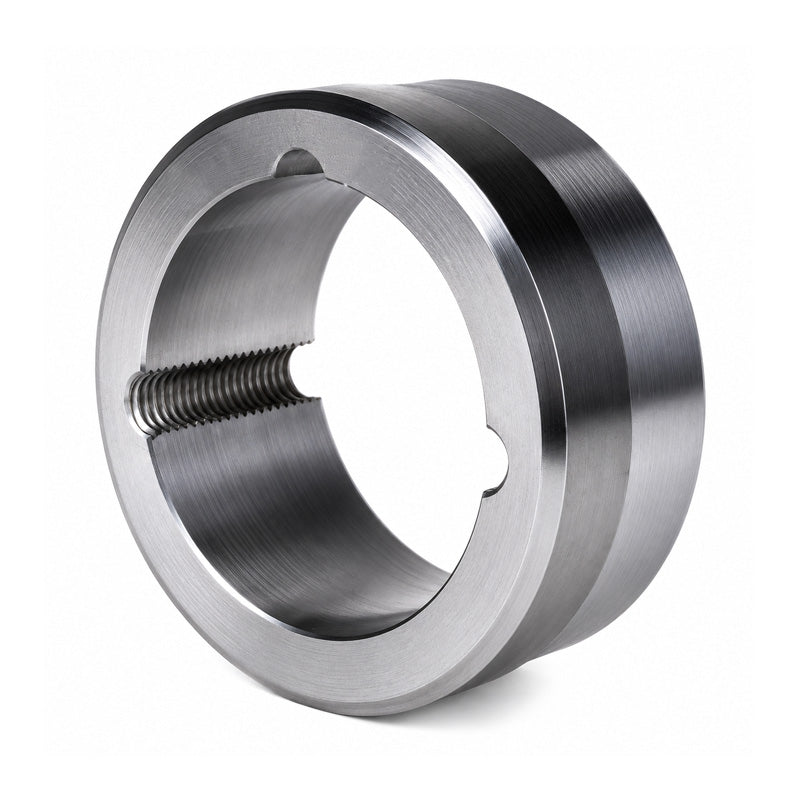

SKF WHG40-1 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG40-1 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
£94.98
ex VAT£113.98inc. VAT
Regular price
Sale price
£94.98
ex VAT£113.98
inc. VAT
In stock
Price Break
10+
£84.53
19+
£79.78
29+
£78.83
39+
£77.88
49+
£76.93
74+
£75.98
99+
£71.24
199+
£70.29
249+
£69.34
499+
£68.39
999+
£66.49
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 4030
- Outside Diameter:
- 200mm
- Width:
- 76mm
Technical
Technical
| Hub Reference | WHG40-1 |
|---|---|
| Bush Number | 4030 |
| A | 200mm |
| B | 190mm |
| C | 189mm |
| D | 76mm |
| E | 32mm |
| F | 30mm |
| F1 | 25mm |
| X | 25mm |
