SKU: W800-MB

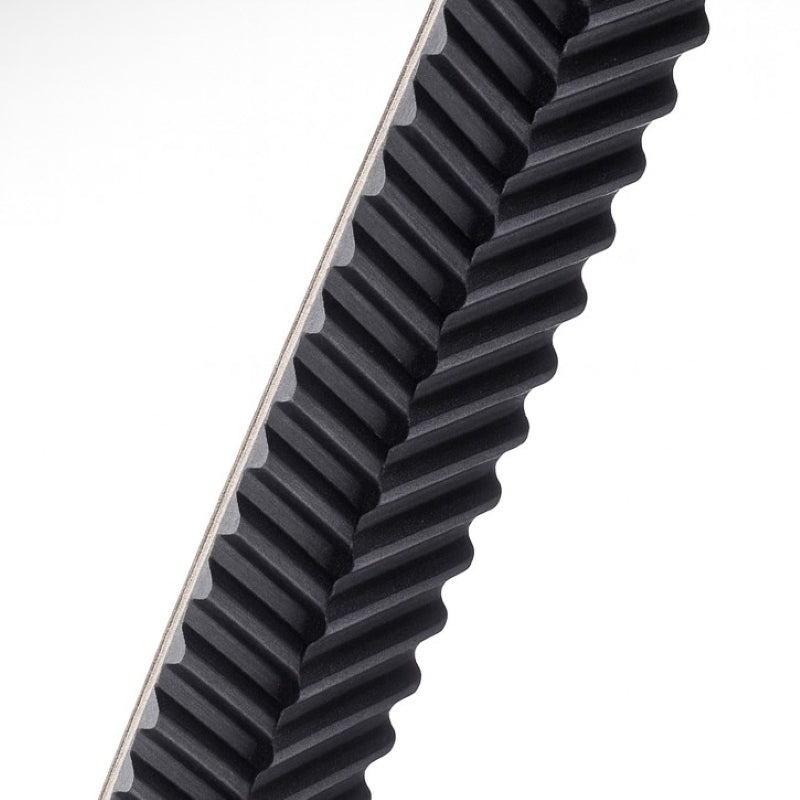

ContiTech W800 SilentSync Helical Offset Toothed Belt 32mm Wide 800mm Length 100 Teeth Allow 2-3 Days
In stock
Price Break
Description
ContiTech SilentSync Timing Belts: The ContiTech SilentSync is a high-performance, self-tracking timing belt engineered for exceptionally quiet, low-vibration operations and is ideal for horizontal drive systems. Featuring a patented Helical Offset Tooth (HOT) design, this belt offers up to 80% more power transmission and operates up to 19 dB quieter than standard straight-toothed belts.
Built with an aramid tension member, synthetic rubber body, and special fabric tooth surface, SilentSync delivers superior strength, durability, and heat resistance (from -30 Degrees C to +130 Degrees C). It is electrically conductive (ISO 9563 compliant), ozone- and aging-resistant, and maintenance-free.
SilentSync belts set a new standard for quiet, efficient, and reliable power transmission in demanding industrial applications.
Benefits: Continuous tooth engagement, improved alignment, maintenance free
- Brand / Quality:
- ContiTech - High Quality
- Belt Width Approx:
- 32mm
- Belt Length Approx:
- 800mm
- Number of Teeth:
- 100
Technical
| Belt Length | 800mm |
|---|---|
| Belt Width | 32mm |
| Number of Teeth | 100 |
| Tooth Pitch - t | 8mm |
| Tooth Surface | Specially Treated Fabric |
| Tooth Material | Synthetic Rubber |
| Belt Backing Material | Synthetic Rubber |
| Tension Member | Aramid |
| Temperature Range | -30 to 130 Deg C |
| Colour | White |
| Weight | 0.117kg |
