SKU: W30-EU

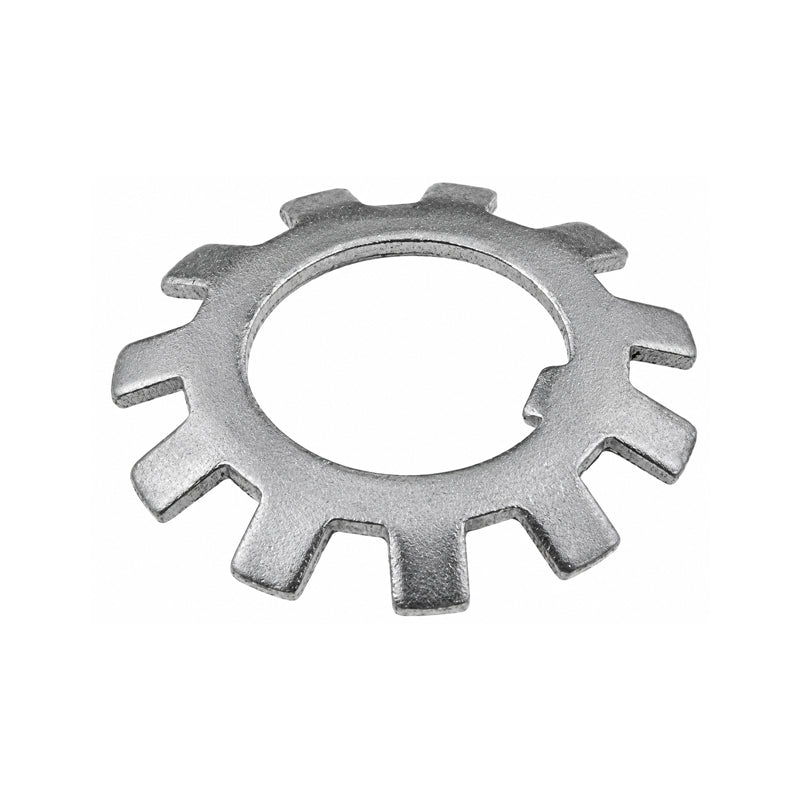

Premier Budget W30 Imperial Locking Tab Washer 5.983x8.063x0.146 inch
Premier Budget W30 Imperial Locking Tab Washer 5.983x8.063x0.146 inch
Regular price
£19.71
ex VAT£23.65inc. VAT
Regular price
Sale price
£19.71
ex VAT£23.65
inc. VAT
In stock
Price Break
3+
£17.54
5+
£16.55
9+
£16.36
19+
£16.16
49+
£15.96
74+
£15.77
99+
£14.78
199+
£14.58
249+
£14.39
499+
£14.19
999+
£13.79
Description
Description
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. These lock washers are used with lock nuts of the N and AN series.
Benefits: Efficient, secure, inexpensive, removable and often re-usable.
- Brand / Quality:
- Premier Budget - Good Quality
- Inside Diameter:
- 151.97mm = 5.983 inch
- Outside Diameter:
- 204.8mm = 8.063 inch
- Width:
- 3.71mm = 0.146 inch
Technical
Technical
| d | 5.983 inch |
|---|---|
| d<sub>1</sub> | 7.093 inch |
| d<sub>2</sub> | 8.063 inch |
| B | 0.146 inch |
| f | 0.59 inch |
| M | 5.73 inch |
| V | 0.313 inch |
| Mass | 0.3402 kg |
