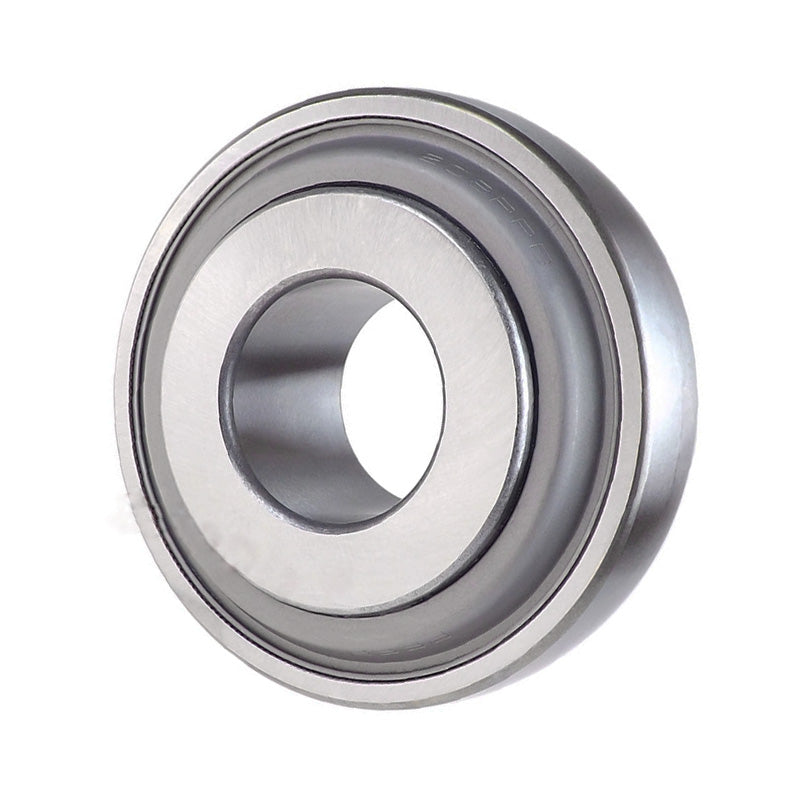

• Major Brand W209PPB2 Gang Disc Harrow Spherical Outer Round Bore Standard Non-Relubricatable Bearing 1.7717x3.3465x1.188 inch
1 1

SKU: W209PPB2-MB

Major Brand W209PPB2 Gang Disc Harrow Spherical Outer Round Bore Standard Non-Relubricatable Bearing 1.7717x3.3465x1.188 inch

Major Brand W209PPB2 Gang Disc Harrow Spherical Outer Round Bore Standard Non-Relubricatable Bearing 1.7717x3.3465x1.188 inch
£39.89 ex VAT£47.87inc. VAT
£39.89 ex VAT£47.87 inc. VAT
Sale Sold out

Equivalent to: DS209TT2, R3-209E3, PDNF145-45

Low stock

Price Break
5+ £35.50
9+ £33.51
19+ £33.11
29+ £32.71
49+ £32.31
74+ £31.91
99+ £29.92
199+ £29.52
249+ £29.12
499+ £28.72
999+ £27.92
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Gang Disc
Application conditions:

  • Utilizes two to three support bearings on a common shaft with several disks spaced with spools
  • Constant and unpredictable movement of the gang shaft can generate severe stress on the internal components of the support bearings
  • A great working depth places the bearings directly into the flow of soil and crop residue
Benefits and functional features:

Bolt-on-performance:
  • Directly interchangeable industry standard units
  • Static misalignment capability accommodates imprecise mounting surfaces
Increased productivity and bearing life in field:
  • Dynamic misalignment capability eliminates internal bearing damage
  • Shock load protection due to high grade ductile iron housing
  • Exclusive patented sealing system eliminates the need for daily relubrication

Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe


Equivalent: DS209TT2, R3-209E3, PDNF145-45
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
45mm = 1.771 inch
Outside Diameter:
85mm = 3.346 inch
Width:
30.18mm = 1.188 (1-3/16) inch
Technical
A/d 1.7717 inch = 45mm (Tolerance +.0000 to minus 0.0005)
D 3.3465 inch = 85mm (Tolerance +.0000 to minus 0.0006)
Bi 1.188 inch = 30.175mm (Tolerance +.0000 to minus 0.005)
Be 1.188 inch = 30.175mm (Tolerance +.0000 to minus 0.005)
Seal/Shield Type P, TRL Seal
Load Ratings Dynamic 7350 lbf
Load Ratings Static 4150 lb
