• Major Brand W208PPB13 Gang Disc Harrow Spherical Outer Square Bore Standard Non-Relubricatable Bearing 0.905x3.1496x1.438 inch
1 1

SKU: W208PPB13-MB

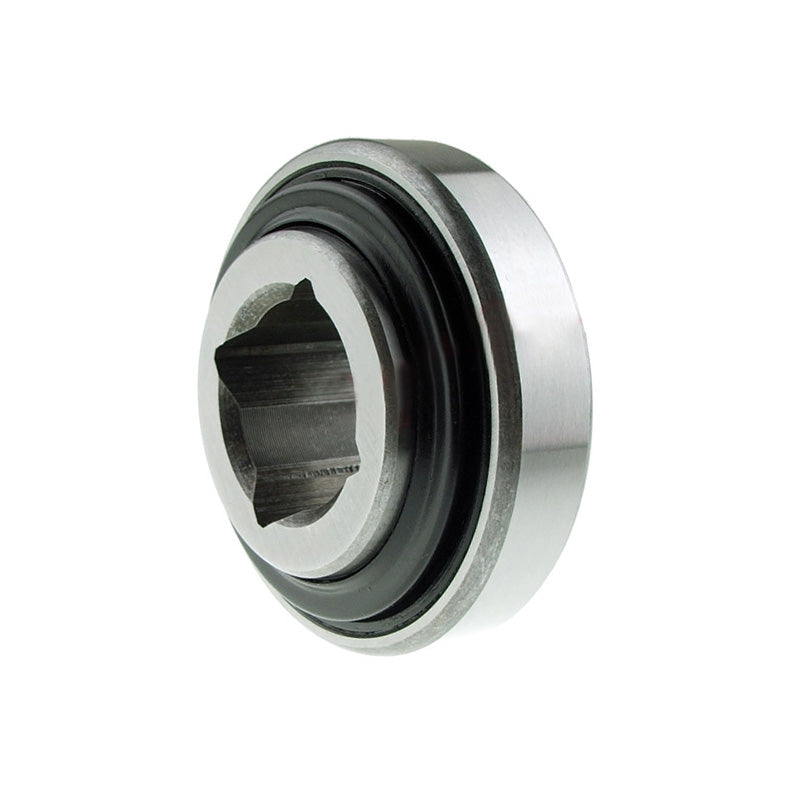

Major Brand W208PPB13 Gang Disc Harrow Spherical Outer Square Bore Standard Non-Relubricatable Bearing 0.905x3.1496x1.438 inch

Major Brand W208PPB13 Gang Disc Harrow Spherical Outer Square Bore Standard Non-Relubricatable Bearing 0.905x3.1496x1.438 inch
£22.17 ex VAT£26.60inc. VAT
£22.17 ex VAT£26.60 inc. VAT
Sale Sold out

Equivalent to: DS208TT13, 14S5-208E3, 1AS08-7/8, 2/DNF240/7

Low stock

Price Break
5+ £19.73
9+ £18.62
19+ £18.40
29+ £18.18
49+ £17.96
74+ £17.74
99+ £16.63
199+ £16.41
249+ £16.18
499+ £15.96
999+ £15.52
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Gang Disc
Application conditions:

  • Utilizes two to three support bearings on a common shaft with several disks spaced with spools
  • Constant and unpredictable movement of the gang shaft can generate severe stress on the internal components of the support bearings
  • A great working depth places the bearings directly into the flow of soil and crop residue
Benefits and functional features:

Bolt-on-performance:
  • Directly interchangeable industry standard units
  • Static misalignment capability accommodates imprecise mounting surfaces
Increased productivity and bearing life in field:
  • Dynamic misalignment capability eliminates internal bearing damage
  • Shock load protection due to high grade ductile iron housing
  • Exclusive patented sealing system eliminates the need for daily relubrication

Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe


Equivalent: DS208TT13, 14S5-208E3, 1AS08-7/8, 2/DNF240/7
Brand / Quality:
PEER - High Quality
Inside Diameter:
22.98mm = 0.905 inch
Outside Diameter:
80mm = 3.149 inch
Width:
36.53mm = 1.437 (1-7/16) inch
Technical
A/d 0.905 inch = 22.987mm (Tolerance +.0000 to minus +/-.005)
D 3.1496 inch = 80mm (Tolerance +.0000 to minus 0.0005)
Bi 1.438 inch = 36.5252mm
Be 0.709 inch = 18.0086mm (Tolerance +.0000 to minus 0.005)
Seal/Shield Type P, TRL Seal
Load Ratings Dynamic 7340 lbf
Load Ratings Static 3650 lbf
