SKU: VHR-3-1/2

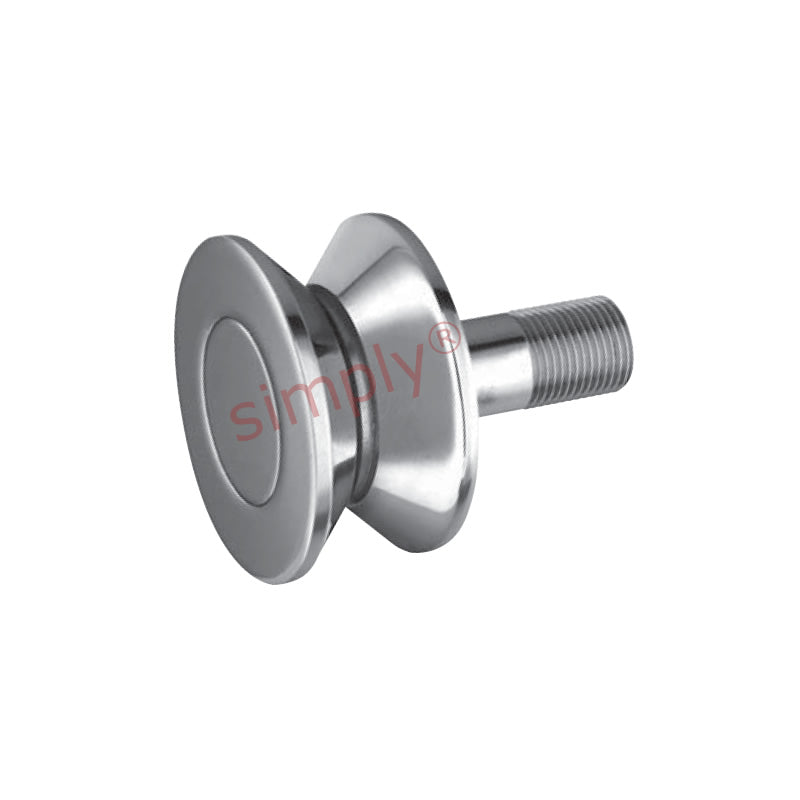

Major Brand VHR3-1/2 Hex Head V-Groove Hi-Roller Bearing 3-1/2 inch Outside Diameter
Major Brand VHR3-1/2 Hex Head V-Groove Hi-Roller Bearing 3-1/2 inch Outside Diameter
Regular price
£156.83
ex VAT£188.20inc. VAT
Regular price
Sale price
£156.83
ex VAT£188.20
inc. VAT
Equivalent to: VHR-350-A VLR-3-1/2 VCF-3-1/2
In stock
Price Break
3+
£139.57
4+
£131.73
9+
£130.16
19+
£128.60
29+
£127.03
39+
£125.46
49+
£117.62
59+
£116.05
249+
£114.48
499+
£112.91
999+
£109.78
Description
Description
|
V-Groove Hi-Roller Bearing: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: VHR-350-A VLR-3-1/2 VCF-3-1/2
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Width:
- 42.88mm = 1.688 inch
Technical
Technical
| A | 3.5 inch |
|---|---|
| B | 1.688 inch |
| F | 2.25 inch |
| G | 0.875 inch |
| K | 0.875 inch |
| L | 2 inch |
| M | 1.125 inch |
| Thread class 2A N | 7/8-14 UNF |
| R | 1 inch |
| S | 0.062 inch |
| Basic dynamic rating | 5180 lbs |
| Dynamic thrust load rating | 3185 lbs |
| Max static capacity | 2270 lbs |
