SKU: UST210CC-SNR

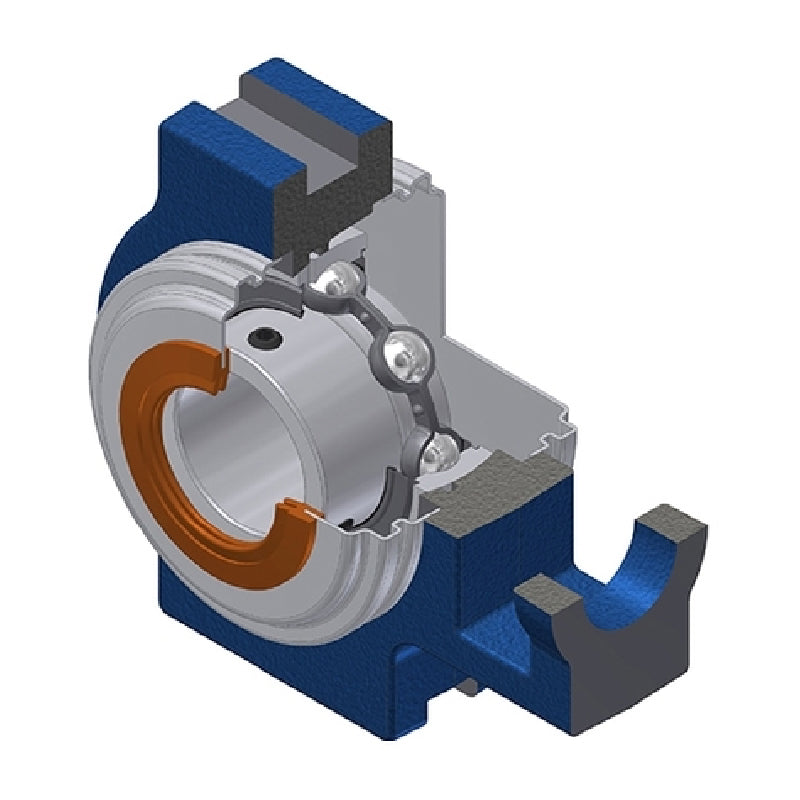

SNR UST210CC Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR UST210CC Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
£88.65
ex VAT£106.38inc. VAT
Regular price
Sale price
£88.65
ex VAT£106.38
inc. VAT
In stock
Price Break
3+
£87.76
4+
£84.22
9+
£82.44
19+
£79.79
49+
£78.01
99+
£73.58
499+
£62.06
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Share this product
Description
Description
UST200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UST
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 49mm |
| A1 | 16mm |
| A2 | 37mm |
| B | 43.5mm |
| H | 117mm |
| H1 | 102mm |
| H2 | 83mm |
| L | 149mm |
| L1 | 90mm |
| L2 | 16mm |
| L3 | 86mm |
| N | 29mm |
| N1 | 19mm |
| N2 | 49mm |
| S | 10.9mm |
| Dz | 100mm |
| Z | 74.6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.59 kg |
