SKU: UST204N-SNR

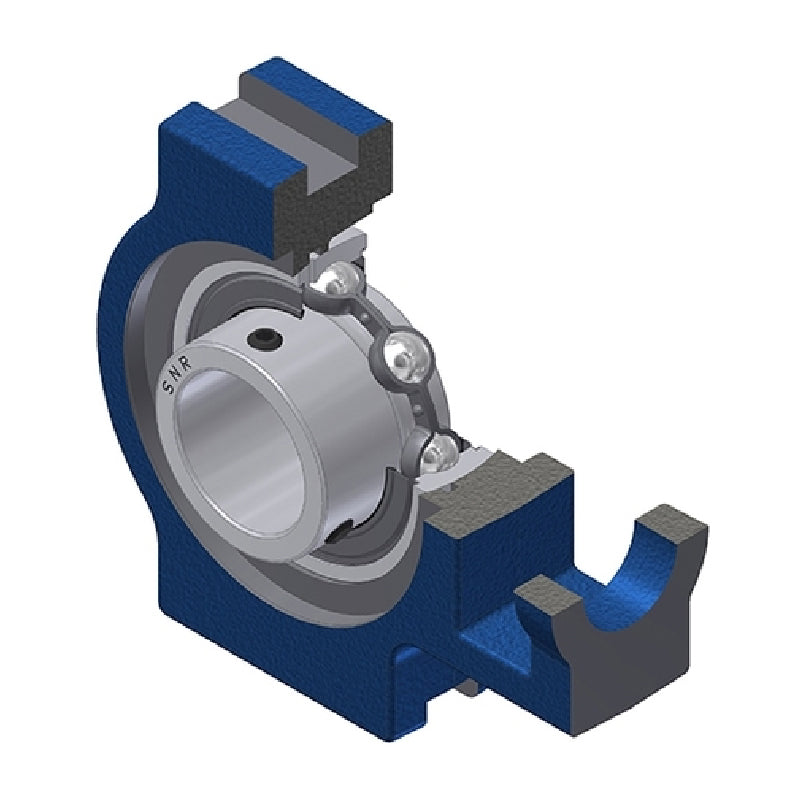

SNR UST204N Metric Cast Iron Take Up Unit with 20mm Bore Bearing Unit - Allow 2-3 Days
SNR UST204N Metric Cast Iron Take Up Unit with 20mm Bore Bearing Unit - Allow 2-3 Days
Regular price
£110.83
ex VAT£133.00inc. VAT
Regular price
Sale price
£110.83
ex VAT£133.00
inc. VAT
In stock
Price Break
3+
£109.72
4+
£105.29
9+
£103.07
19+
£99.75
49+
£97.53
99+
£91.99
499+
£77.58
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Share this product
Description
Description
UST200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- UST
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 32mm |
| A1 | 12mm |
| A2 | 21mm |
| B | 25mm |
| H | 89mm |
| H1 | 76mm |
| H2 | 51mm |
| L | 94mm |
| L1 | 61mm |
| L2 | 10mm |
| L3 | 51mm |
| N | 19mm |
| N1 | 16mm |
| N2 | 32mm |
| S | 7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.73 kg |
