SKU: USPH210-SNR

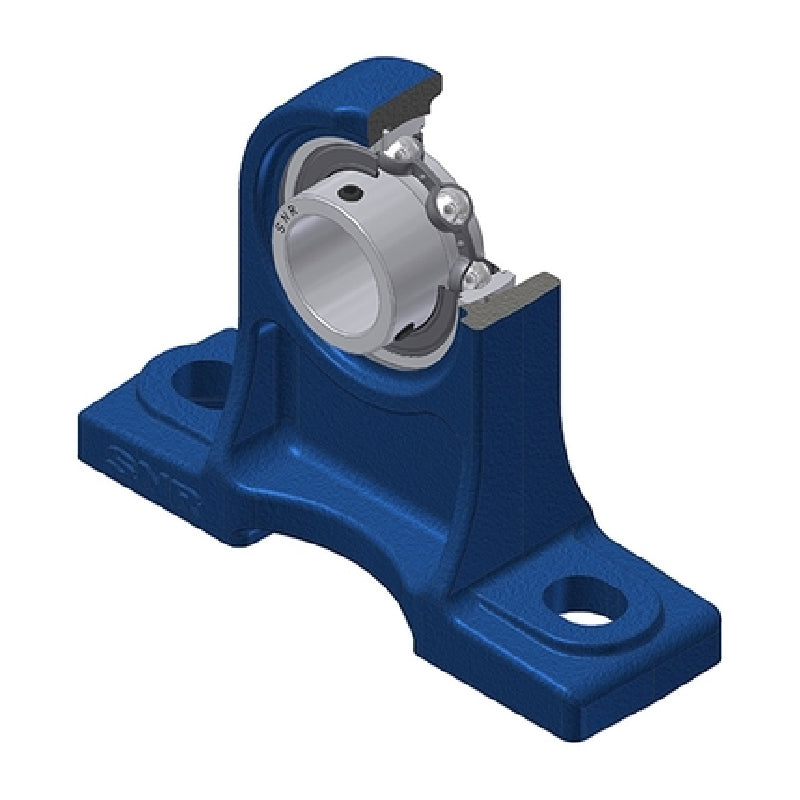

SNR USPH210 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
SNR USPH210 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price
£55.40
ex VAT£66.48inc. VAT
Regular price
Sale price
£55.40
ex VAT£66.48
inc. VAT
In stock
Price Break
3+
£54.85
4+
£52.63
9+
£51.52
19+
£49.86
49+
£48.75
99+
£45.98
499+
£38.78
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Share this product
Description
Description
USPH200 Series 2 Bolt Cast Iron High Centre Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- USPH
- Bolt Hole Centres:
- 43.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 70mm |
| A1 | 36mm |
| B | 43.5mm |
| H | 110mm |
| H1 | 22mm |
| H2 | 165mm |
| J | 159mm |
| L | 206mm |
| L1 | 65mm |
| N | 20mm |
| N1 | 25mm |
| S | 10.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 3.56 kg |
