SKU: USPH208N-SNR

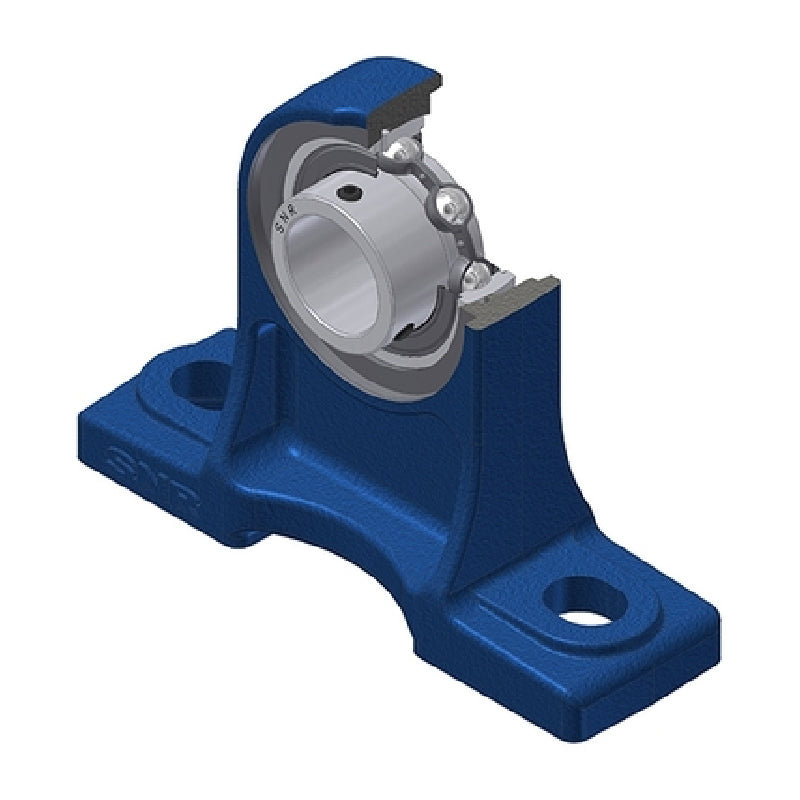

SNR USPH208N Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days

SNR USPH208N Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days
Regular price £77.53 ex VAT£93.04inc. VAT
Regular price Sale price £77.53 ex VAT£93.04 inc. VAT
Sale Sold out

In stock

Price Break
3+ £76.75
4+ £73.65
9+ £72.10
19+ £69.78
49+ £68.23
99+ £64.35
499+ £54.27
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 40mm
A 70mm
A1 34mm
B 34mm
H 100mm
H1 19mm
H2 149mm
J 137mm
L 184mm
L1 58mm
N 17mm
N1 25mm
S 9mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.7 kg
