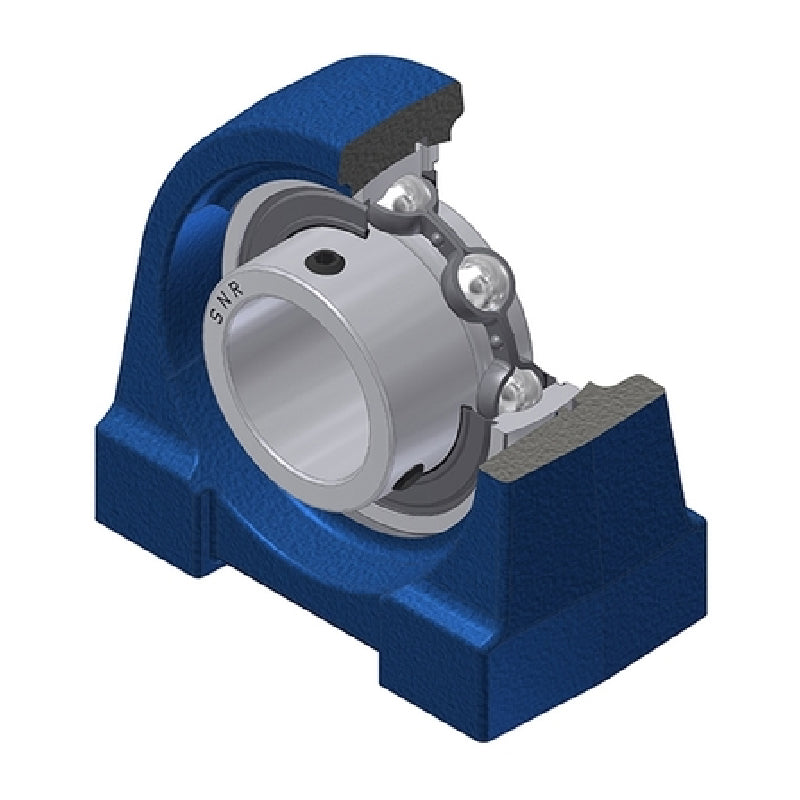

SNR USPG210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 50mm Bore Insert
SNR USPG210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 50mm Bore Insert
Regular price
£44.34
ex VAT£53.21inc. VAT
Regular price
Sale price
£44.34
ex VAT£53.21
inc. VAT
In stock
Price Break
3+
£39.46
4+
£37.25
9+
£36.80
19+
£36.36
49+
£35.91
99+
£35.47
499+
£33.25
999+
£32.81
1999+
£32.37
2999+
£31.92
4999+
£31.04
Description
Description
|
USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- USPG
- Bolt Hole Centres:
- 95mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 60mm |
| A1 | 35mm |
| B | 43.5mm |
| E | 25mm |
| H | 57.2mm |
| H1 | 21mm |
| H2 | 114mm |
| J | 95mm |
| L | 135mm |
| L1 | 40mm |
| N | M16 |
| S | 10.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.76 kg |
