SKU: USPG209CC-SNR

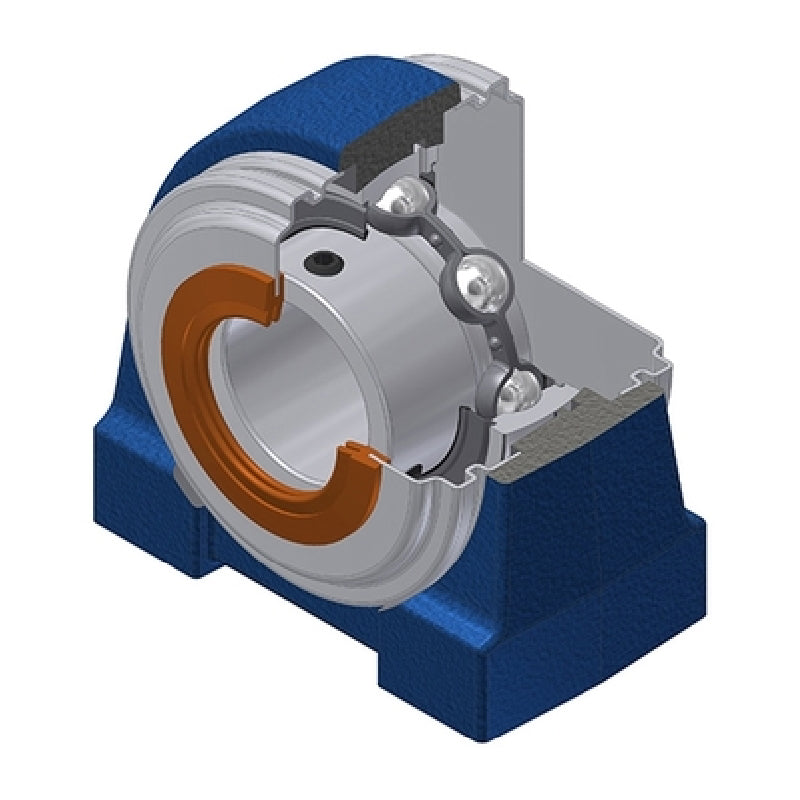

SNR USPG209CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 45mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR USPG209CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 45mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
£110.78
ex VAT£132.94inc. VAT
Regular price
Sale price
£110.78
ex VAT£132.94
inc. VAT
In stock
Price Break
3+
£109.67
4+
£105.24
9+
£103.03
19+
£99.70
49+
£97.49
99+
£91.95
499+
£77.55
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- USPG
- Bolt Hole Centres:
- 85mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 54mm |
| A1 | 33mm |
| B | 41.2mm |
| E | 22mm |
| H | 53.9mm |
| H1 | 20mm |
| H2 | 106mm |
| J | 85mm |
| L | 120mm |
| L1 | 40mm |
| N | M12 |
| S | 10.2mm |
| Dz | 95mm |
| Z | 70.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.219 kg |
