SKU: USPG208N-SNR

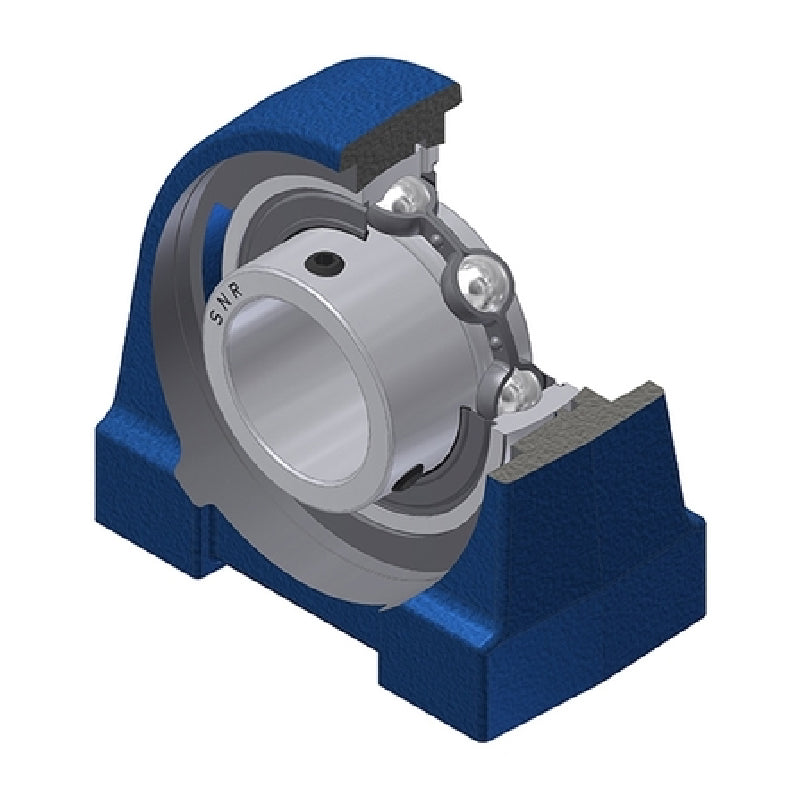

SNR USPG208N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days
SNR USPG208N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days
Regular price
£77.52
ex VAT£93.02inc. VAT
Regular price
Sale price
£77.52
ex VAT£93.02
inc. VAT
In stock
Price Break
3+
£76.74
4+
£73.64
9+
£72.09
19+
£69.77
49+
£68.22
99+
£64.34
499+
£54.26
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- USPG
- Bolt Hole Centres:
- 78mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 54mm |
| A1 | 30mm |
| B | 34mm |
| E | 22mm |
| H | 49.2mm |
| H1 | 20mm |
| H2 | 98mm |
| J | 78mm |
| L | 110mm |
| L1 | 35mm |
| N | M12 |
| S | 9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.7 kg |
