SKU: USPE212CC-SNR

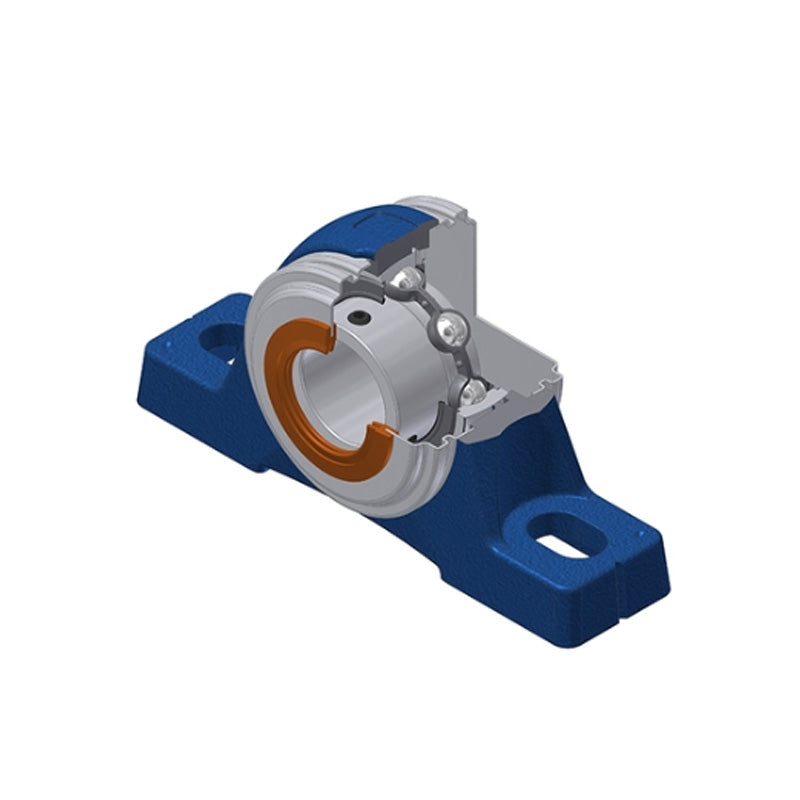

SNR USPE212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR USPE212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price £132.91 ex VAT£159.49inc. VAT
Regular price Sale price £132.91 ex VAT£159.49 inc. VAT
Sale Sold out

In stock

Price Break
3+ £131.58
4+ £126.26
9+ £123.61
19+ £119.62
49+ £116.96
99+ £110.32
499+ £93.04
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

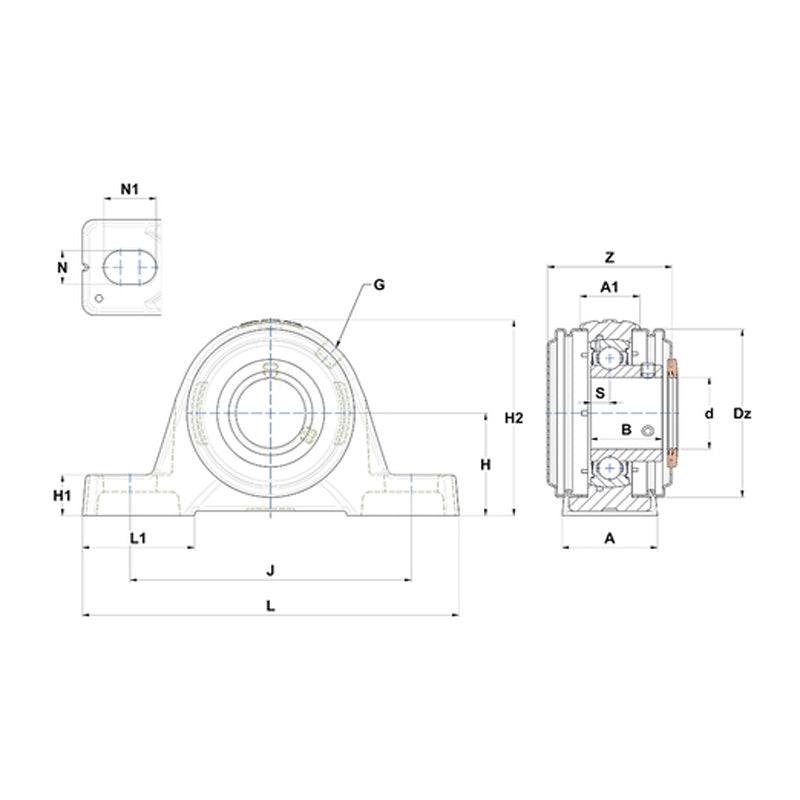

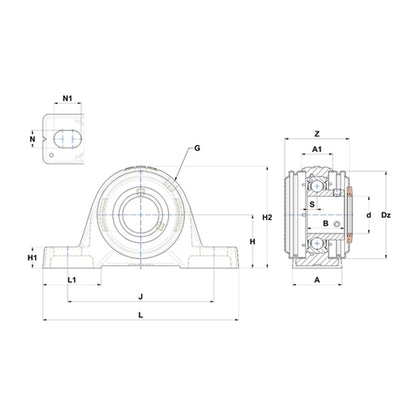

--- Dimensions
Shaft diameter 60mm
A 60mm
A1 42mm
B 53.7mm
H 69.9mm
H1 25mm
H2 140mm
J 190mm
L 240mm
L1 71mm
N 18mm
N1 28mm
S 14.9mm
Dz 120mm
Z 92.3mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.83 kg
