SKU: USPAE212CC-SNR

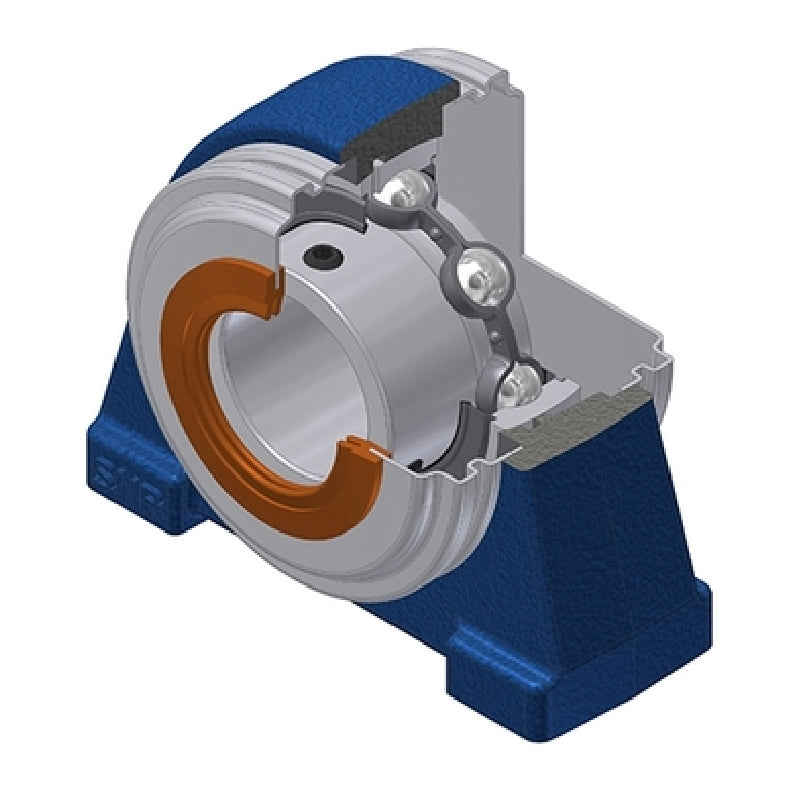

SNR USPAE212CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR USPAE212CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
£133.01
ex VAT£159.61inc. VAT
Regular price
Sale price
£133.01
ex VAT£159.61
inc. VAT
In stock
Price Break
3+
£131.68
4+
£126.36
9+
£123.70
19+
£119.71
49+
£117.05
99+
£110.40
499+
£93.11
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
USPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- USPAE
- Bolt Hole Centres:
- 118mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 60mm |
| A1 | 42mm |
| B | 53.7mm |
| E | 20mm |
| H | 69.9mm |
| H1 | 16mm |
| H2 | 140mm |
| J | 118mm |
| L | 150mm |
| L1 | 32mm |
| N | M16 |
| S | 14.9mm |
| Dz | 120mm |
| Z | 91.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.23 kg |
