SKU: USPAE210-SNR

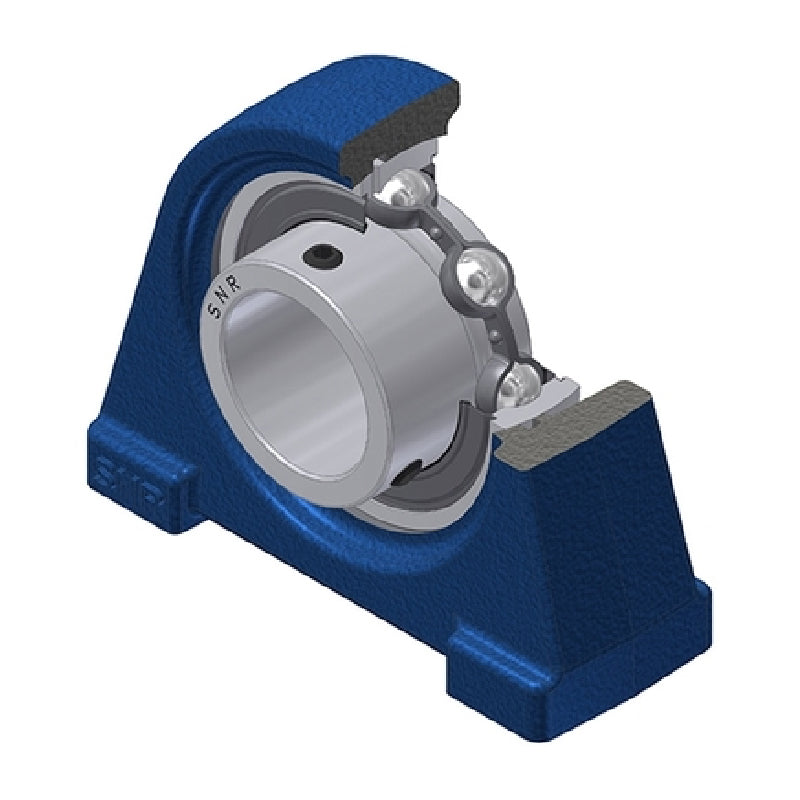

SNR USPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert - Allow 2-3 Days
SNR USPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert - Allow 2-3 Days
Regular price
£55.39
ex VAT£66.47inc. VAT
Regular price
Sale price
£55.39
ex VAT£66.47
inc. VAT
In stock
Price Break
3+
£54.84
4+
£52.62
9+
£51.51
19+
£49.85
49+
£48.74
99+
£45.97
499+
£38.77
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
USPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- USPAE
- Bolt Hole Centres:
- 101.6mm
Technical
Technical

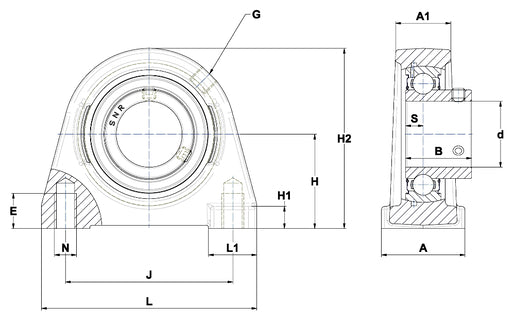

| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 54mm |
| A1 | 34mm |
| B | 43.5mm |
| E | 20mm |
| H | 57.2mm |
| H1 | 15mm |
| H2 | 115mm |
| J | 101.6mm |
| L | 135mm |
| L1 | 33.5mm |
| N | M16 |
| S | 10.9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.46 kg |
