SKU: USP211N-SNR

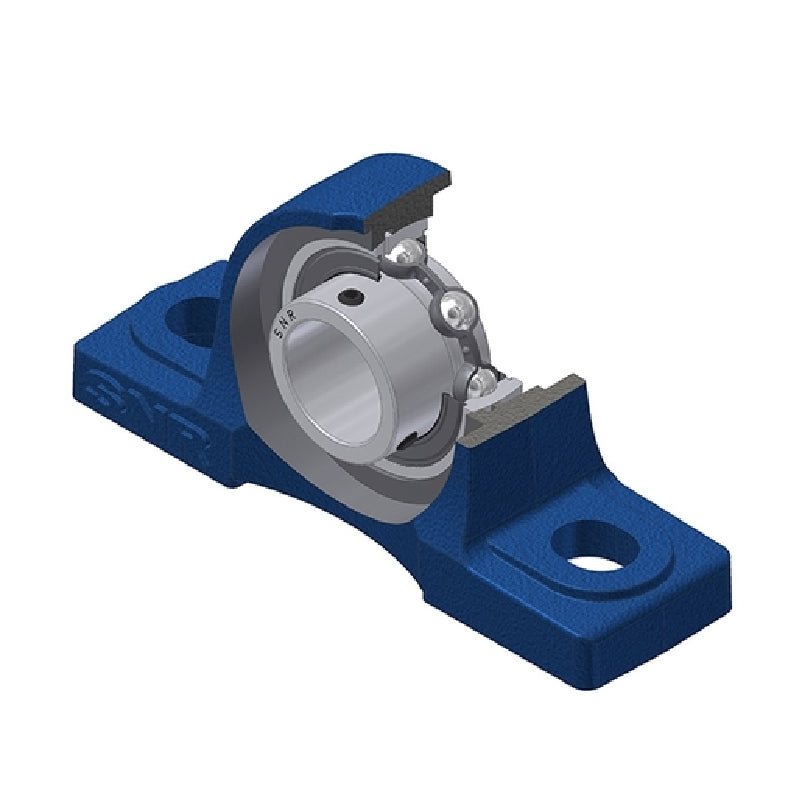

SNR USP211N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days

SNR USP211N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
Regular price £77.54 ex VAT£93.05inc. VAT
Regular price Sale price £77.54 ex VAT£93.05 inc. VAT
Sale Sold out

In stock

Price Break
3+ £76.76
4+ £73.66
9+ £72.11
19+ £69.79
49+ £68.24
99+ £64.36
499+ £54.28
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 55mm
A 60mm
A1 40mm
B 45.3mm
H 63.5mm
H1 22mm
H2 126mm
J 171mm
L 219mm
L1 70mm
N 20mm
N1 25mm
S 11.8mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.47 kg
