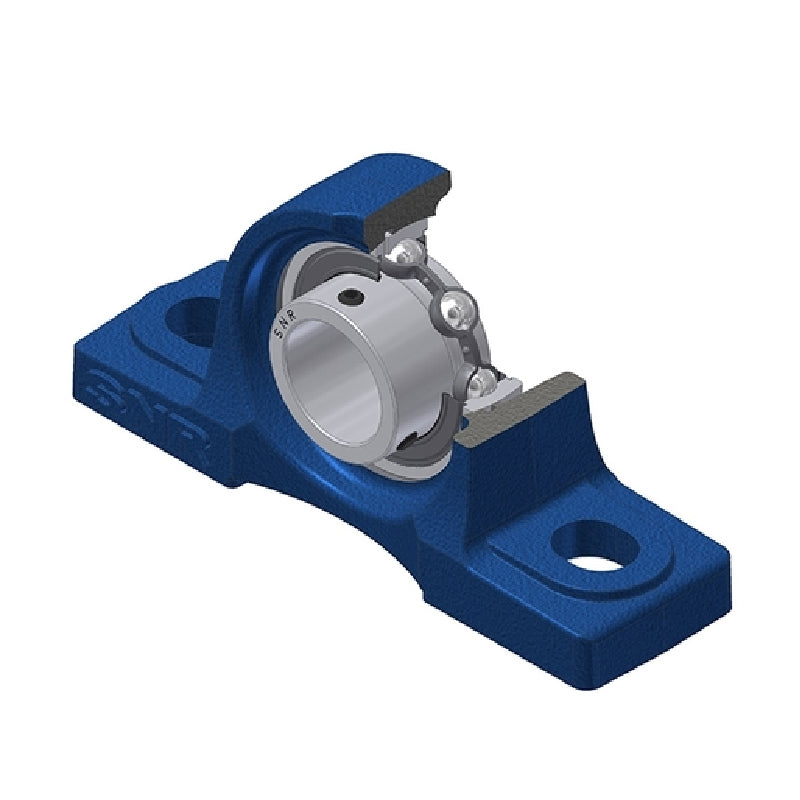

SNR USP201 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 12mm Bore Insert - Allow 2-3 Days
SNR USP201 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 12mm Bore Insert - Allow 2-3 Days
Regular price
£19.92
ex VAT£23.90inc. VAT
Regular price
Sale price
£19.92
ex VAT£23.90
inc. VAT
In stock
Price Break
3+
£19.72
4+
£18.92
9+
£18.53
19+
£17.93
49+
£17.53
99+
£16.53
499+
£13.94
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Share this product
Description
Description
USP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 12mm
- Style:
- USP
- Bolt Hole Centres:
- 95mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 12mm |
| A | 38mm |
| A1 | 22mm |
| B | 22mm |
| H | 30.2mm |
| H1 | 15mm |
| H2 | 62mm |
| J | 95mm |
| L | 127mm |
| L1 | 42mm |
| N | 13mm |
| N1 | 19mm |
| S | 6mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.5 Nm |
| Mass | 0.59 kg |
