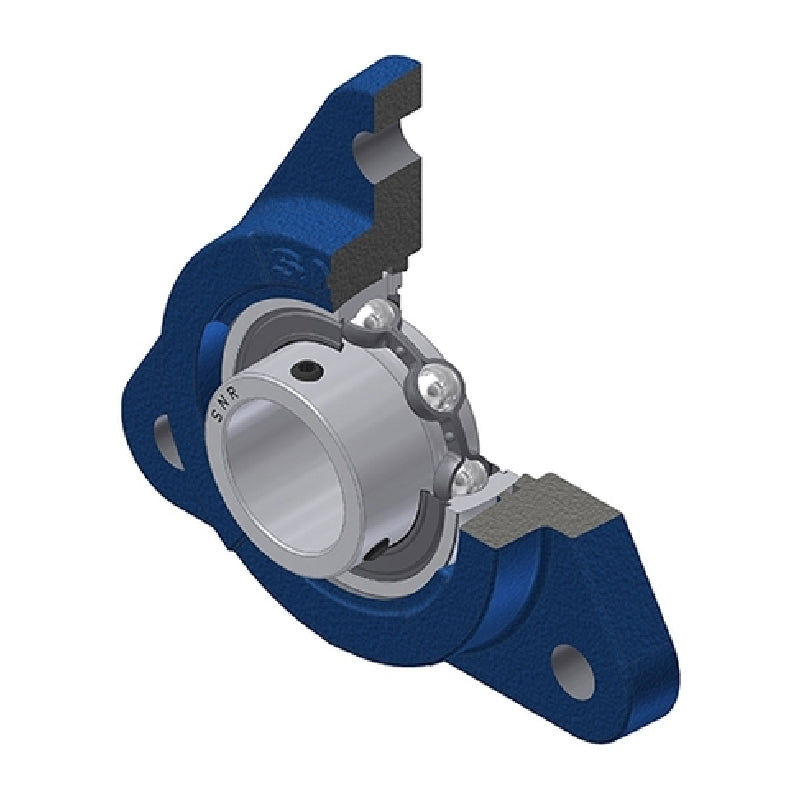

SNR USFTE207 Metric Three Bolt Cast Iron Triangular Housing with 35mm Bore Insert - Allow 2-3 Days
SNR USFTE207 Metric Three Bolt Cast Iron Triangular Housing with 35mm Bore Insert - Allow 2-3 Days
Regular price
£39.90
ex VAT£47.88inc. VAT
Regular price
Sale price
£39.90
ex VAT£47.88
inc. VAT
In stock
Price Break
3+
£39.50
4+
£37.91
9+
£37.11
19+
£35.91
49+
£35.11
99+
£33.12
499+
£27.93
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Share this product
Description
Description
USFTE200 Series 3 Bolt Cast Iron Triangular Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- USFTE
- Bolt Hole Centres:
- 129.7mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 27mm |
| A1 | 16mm |
| A2 | 39.1mm |
| B | 32mm |
| e | 15.6mm |
| H | 128mm |
| H1 | 48mm |
| J | 129.7mm |
| N | 13.5mm |
| S | 8.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 1.42 kg |
