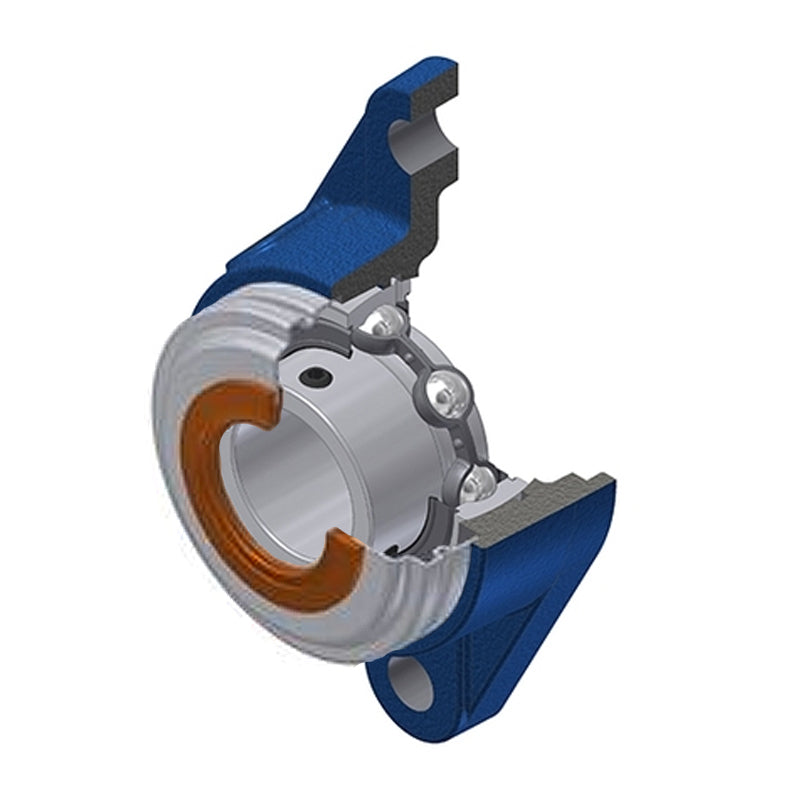

SNR USFLE202CO Metric Two Bolt Oval Cast Iron Flange Housing with 15mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR USFLE202CO Metric Two Bolt Oval Cast Iron Flange Housing with 15mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
£55.37
ex VAT£66.44inc. VAT
Regular price
Sale price
£55.37
ex VAT£66.44
inc. VAT
In stock
Price Break
3+
£54.82
4+
£52.60
9+
£51.49
19+
£49.83
49+
£48.73
99+
£45.96
499+
£38.76
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Share this product
Description
Description
USFLE200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- USFLE
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 15mm |
| A | 26mm |
| A1 | 9.5mm |
| A2 | 33mm |
| B | 22mm |
| e | 17mm |
| H | 99mm |
| J | 76.5mm |
| L | 57mm |
| N | 11.5mm |
| S | 6mm |
| Dz | 46mm |
| Z | 37.6mm |
| G | M6 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.5 Nm |
| Mass | 0.354 kg |
