SKU: USFE202-SNR

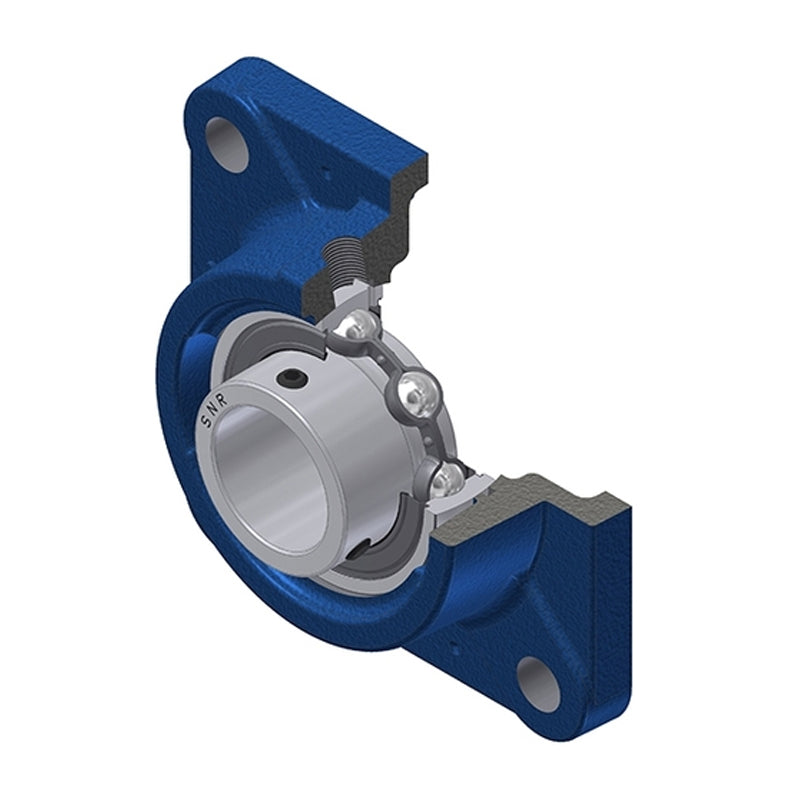

SNR USFE202 Metric Four Bolt Square Cast Iron Flange Housing with 15mm Bore Insert - Allow 2-3 Days
SNR USFE202 Metric Four Bolt Square Cast Iron Flange Housing with 15mm Bore Insert - Allow 2-3 Days
Regular price
£17.71
ex VAT£21.25inc. VAT
Regular price
Sale price
£17.71
ex VAT£21.25
inc. VAT
Allow 2-3 Days
In stock
Price Break
5+
£17.53
10+
£16.82
20+
£16.47
50+
£15.94
100+
£15.58
500+
£14.70
1000+
£12.40
Couldn't load pickup availability
Share this product
Description
Description
USFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- USFE
- Bolt Hole Centres:
- 54mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 15mm |
| A | 31mm |
| A1 | 9.5mm |
| A2 | 33mm |
| B | 22mm |
| e | 17mm |
| J | 54mm |
| L | 76mm |
| N | 11.5mm |
| S | 6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.5 Nm |
| Mass | 0.42 kg |
