SKU: USFC212N-SNR

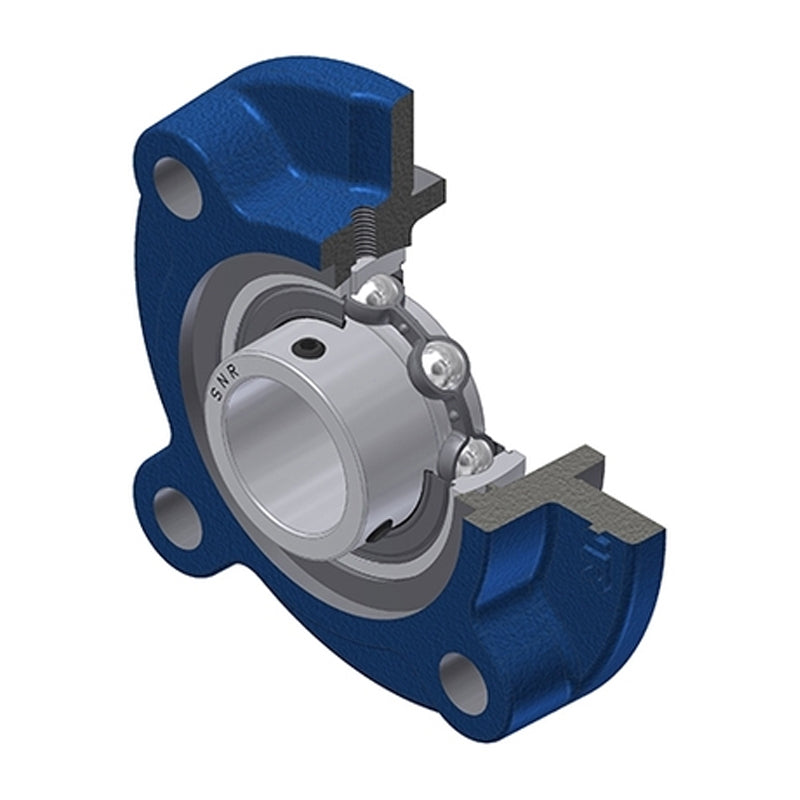

SNR USFC212N Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days

SNR USFC212N Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Insert - Allow 2-3 Days
Regular price £110.79 ex VAT£132.95inc. VAT
Regular price Sale price £110.79 ex VAT£132.95 inc. VAT
Sale Sold out

In stock

Price Break
3+ £109.68
4+ £105.25
9+ £103.03
19+ £99.71
49+ £97.50
99+ £91.96
499+ £77.55
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 60mm
A 48mm
A1 15mm
A2 55.8mm
A4 36mm
B 53.7mm
e 17mm
H3 135mm
J 160mm
L 195mm
N 19mm
S 14.9mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.64 kg
