SKU: USFC209CC-SNR

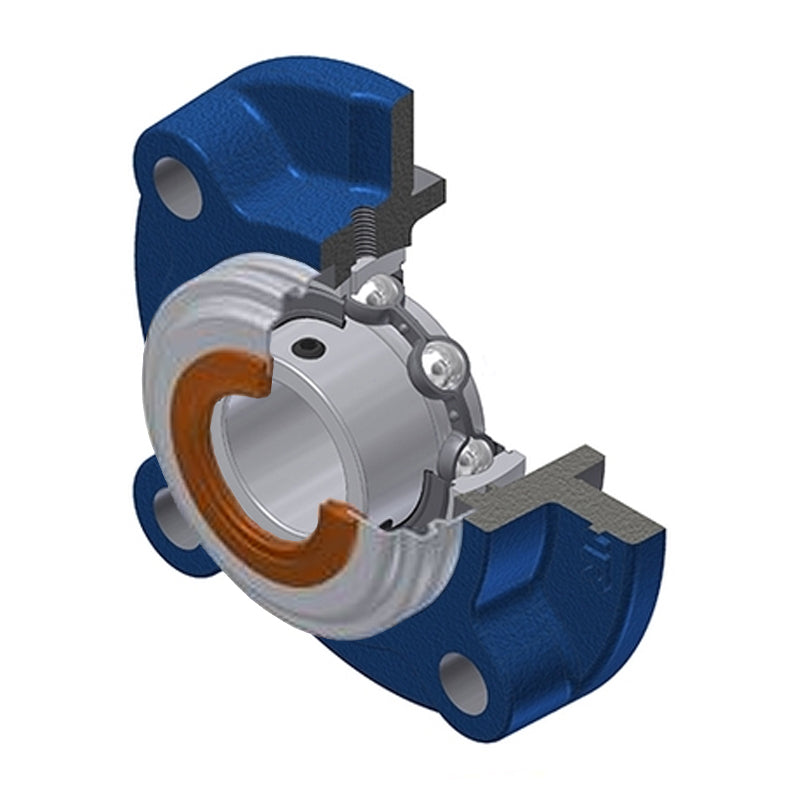

SNR USFC209CC Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR USFC209CC Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price £66.47 ex VAT£79.76inc. VAT
Regular price Sale price £66.47 ex VAT£79.76 inc. VAT
Sale Sold out

In stock

Price Break
3+ £65.81
4+ £63.15
9+ £61.82
19+ £59.82
49+ £58.49
99+ £55.17
499+ £46.53
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 45mm
A 38mm
A1 10mm
A2 41mm
A4 26mm
B 41.2mm
e 10mm
H3 105mm
J 132mm
L 160mm
N 16mm
S 10.2mm
Dz 95mm
Z 57.7mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.47 kg
