SKU: USFA211CC-SNR

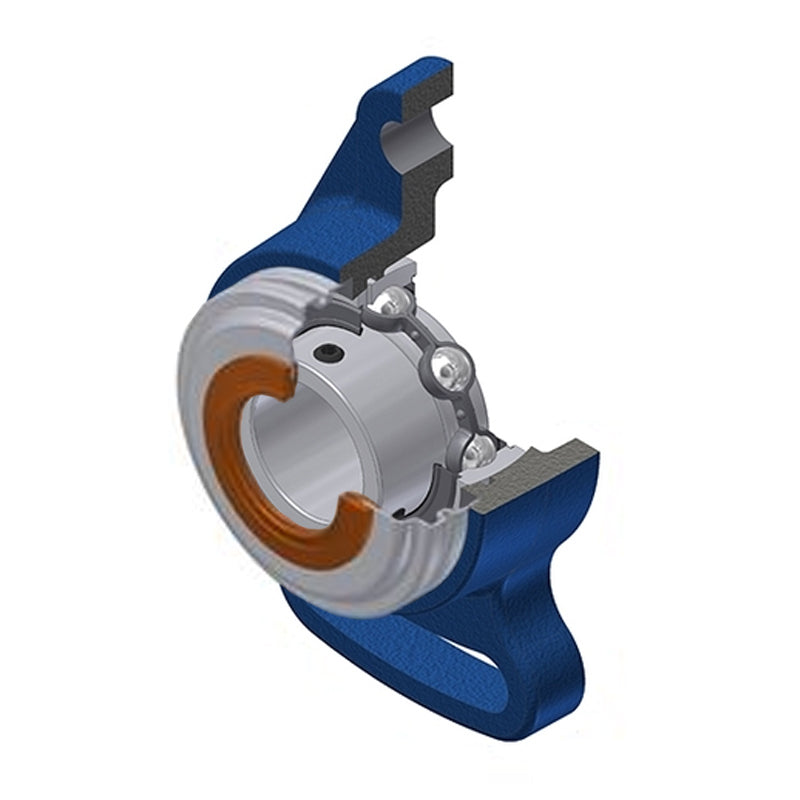

SNR USFA211CC Metric Cast Iron Adjustable Flange Unit with 55mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR USFA211CC Metric Cast Iron Adjustable Flange Unit with 55mm Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price £88.62 ex VAT£106.34inc. VAT
Regular price Sale price £88.62 ex VAT£106.34 inc. VAT
Sale Sold out

In stock

Price Break
3+ £87.73
4+ £84.19
9+ £82.42
19+ £79.76
49+ £77.99
99+ £73.55
499+ £62.03
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 55mm
A 43mm
A1 20mm
A2 58.5mm
B 45.3mm
e 25mm
H 219mm
J 184mm
J1 86mm
L 130mm
L1 104mm
N 16mm
S 11.8mm
Dz 110mm
Z 64.4mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.211 kg
