SKU: USF210-31-SNR

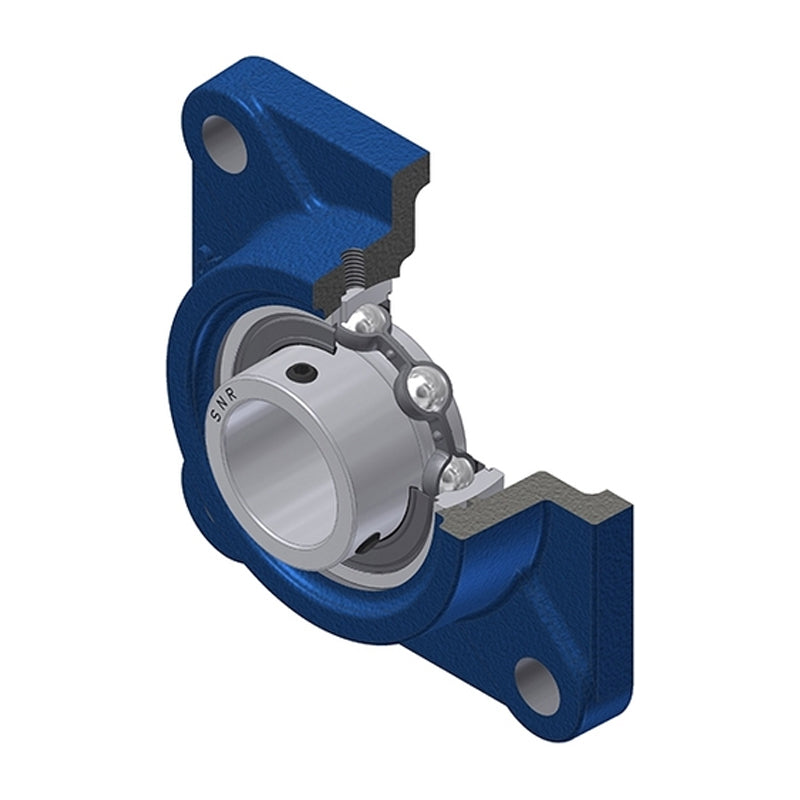

SNR USF210-31 Imperial Four Bolt Square Cast Iron Flange Housing with 1-15/16 inch Bore Insert - Allow 2-3 Days
SNR USF210-31 Imperial Four Bolt Square Cast Iron Flange Housing with 1-15/16 inch Bore Insert - Allow 2-3 Days
Regular price
£55.38
ex VAT£66.46inc. VAT
Regular price
Sale price
£55.38
ex VAT£66.46
inc. VAT
In stock
Price Break
3+
£54.83
4+
£52.61
9+
£51.50
19+
£49.84
49+
£48.73
99+
£45.97
499+
£38.77
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- USF
- Bolt Hole Centres:
- 111mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-15/16 inch |
| A | 40mm |
| A1 | 16mm |
| A2 | 54.6mm |
| B | 43.5mm |
| e | 22mm |
| J | 111mm |
| L | 143mm |
| N | 16mm |
| S | 10.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 2.48 kg |
