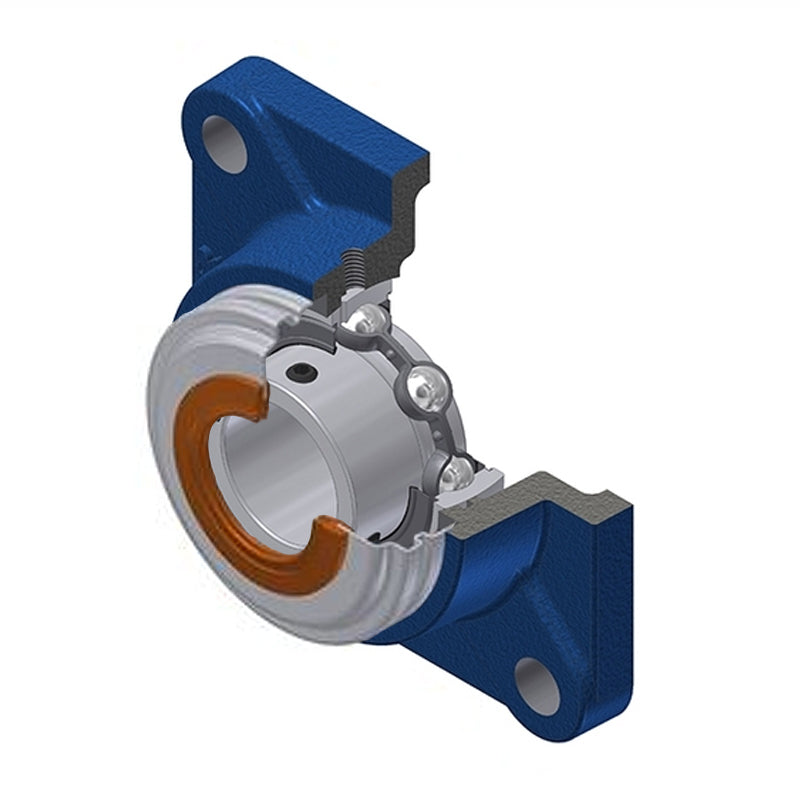

SNR USF207CC Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR USF207CC Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
£55.40
ex VAT£66.48inc. VAT
Regular price
Sale price
£55.40
ex VAT£66.48
inc. VAT
In stock
Price Break
3+
£54.85
4+
£52.63
9+
£51.52
19+
£49.86
49+
£48.75
99+
£45.98
499+
£38.78
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- USF
- Bolt Hole Centres:
- 92mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 34mm |
| A1 | 15mm |
| A2 | 42.5mm |
| B | 32mm |
| e | 19mm |
| J | 92mm |
| L | 117mm |
| N | 14mm |
| S | 8.5mm |
| Dz | 80mm |
| Z | 48.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 1.486 kg |
