SKU: USEHE207-SNR

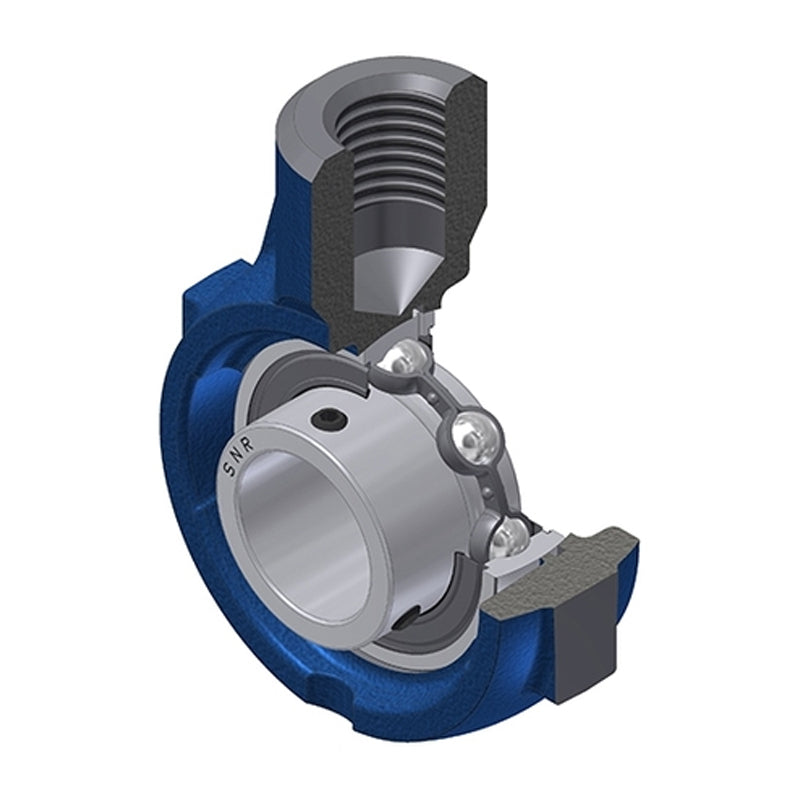

SNR USEHE207 Metric Cast Iron Hanger Bearing Unit with 35mm Bore Insert - Allow 2-3 Days

Name: SNR USEHE207 Metric Cast Iron Hanger Bearing Unit with 35mm Bore Insert - Allow 2-3 Days
Brand: SNR
SKU: USEHE207-SNR
Price: 32.56 GBP
Availability: InStock

£32.56 ex VAT£39.07inc. VAT

£32.56 ex VAT£39.07 inc. VAT

Sale Sold out

In stock

Price Break

3+ £28.98

4+ £27.35

9+ £27.02

19+ £26.70

49+ £26.37

99+ £26.05

499+ £24.42

999+ £24.09

1999+ £23.77

2999+ £23.44

4999+ £22.79

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Inside Diameter:: 35mm
Style:: USEHE

Technical

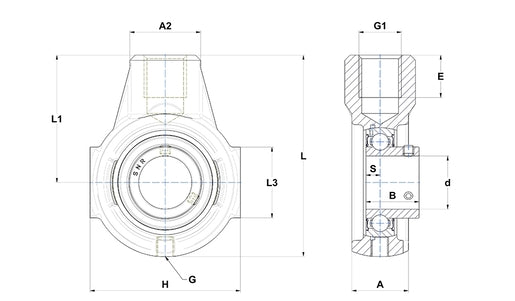

---	Dimensions
Shaft diameter	35mm
A	32mm
A2	40mm
B	32mm
E	24mm
H	90mm
L	122mm
L1	76mm
L3	40mm
S	8.5mm
G	R1/8″
G1	M24
---	Load rating
Dynamic load C	25.7 kN
Static load C0	15.2 kN
---	Unit information
Operating temperature min.	-20°C
Operating temperature max.	100°C
Mass	1.12 kg
