SKU: USC211-SNR
SNR USC211 Metric Cast Iron Cartridge Unit with 55mm Bore Insert 35mm Outside Dia - Allow 2-3 Days
SNR USC211 Metric Cast Iron Cartridge Unit with 55mm Bore Insert 35mm Outside Dia - Allow 2-3 Days
Regular price
£66.47
ex VAT£79.76inc. VAT
Regular price
Sale price
£66.47
ex VAT£79.76
inc. VAT
In stock
Price Break
3+
£65.81
4+
£63.15
9+
£61.82
19+
£59.82
49+
£58.49
99+
£55.17
499+
£46.53
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Share this product
Description
Description

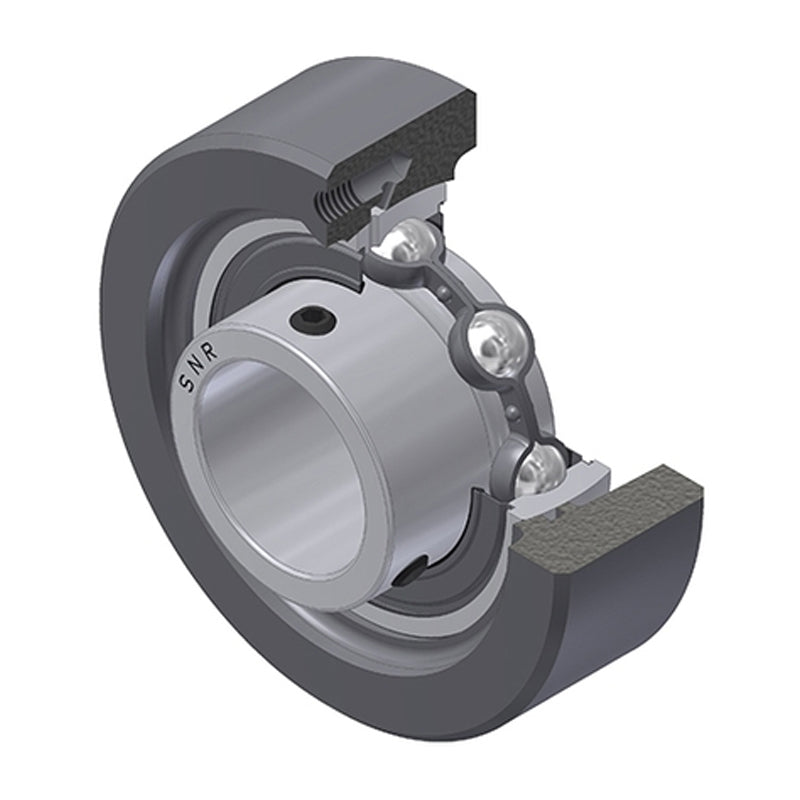

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- USC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 35mm |
| A3 | 2mm |
| B | 45.3mm |
| H | 125mm |
| S | 11.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.17 kg |
