SKU: USC206-SNR

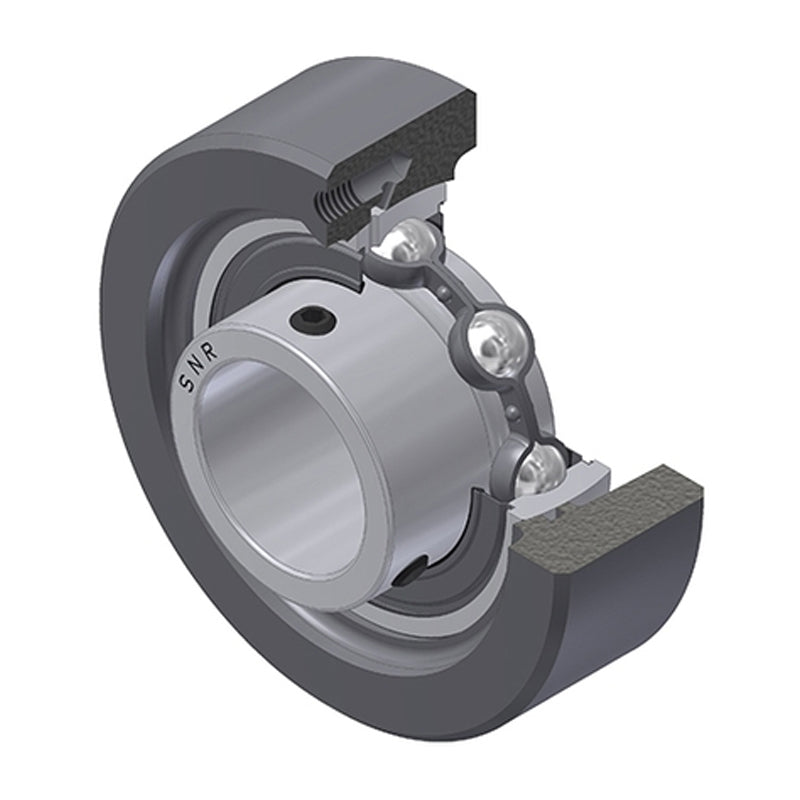

SNR USC206 Metric Cast Iron Cartridge Unit with 30mm Bore Insert 27mm Outside Dia - Allow 2-3 Days
SNR USC206 Metric Cast Iron Cartridge Unit with 30mm Bore Insert 27mm Outside Dia - Allow 2-3 Days
Regular price
£26.59
ex VAT£31.91inc. VAT
Regular price
Sale price
£26.59
ex VAT£31.91
inc. VAT
In stock
Price Break
5+
£26.32
10+
£25.26
20+
£24.73
50+
£23.93
100+
£23.40
500+
£22.07
1000+
£18.61
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- USC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 27mm |
| A3 | 1.5mm |
| B | 30mm |
| H | 85mm |
| S | 8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.77 kg |
