SKU: UKPH210H-SNR

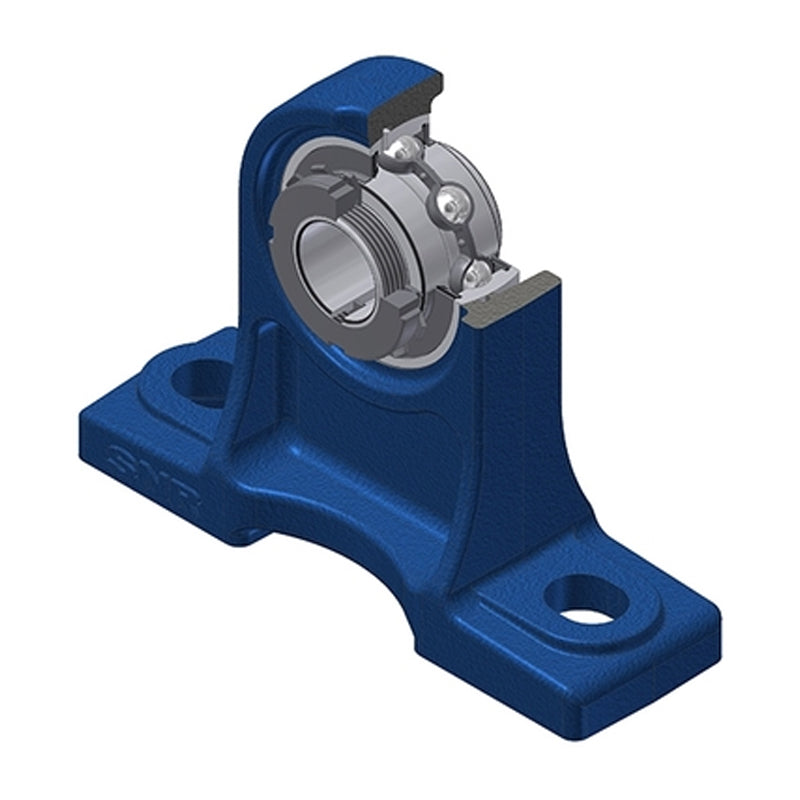

SNR UKPH210H Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days

SNR UKPH210H Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 45mm Shaft - Allow 2-3 Days
Regular price £88.59 ex VAT£106.31inc. VAT
Regular price Sale price £88.59 ex VAT£106.31 inc. VAT
Sale Sold out

In stock

Price Break
3+ £87.70
4+ £84.16
9+ £82.39
19+ £79.73
49+ £77.96
99+ £73.53
499+ £62.01
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

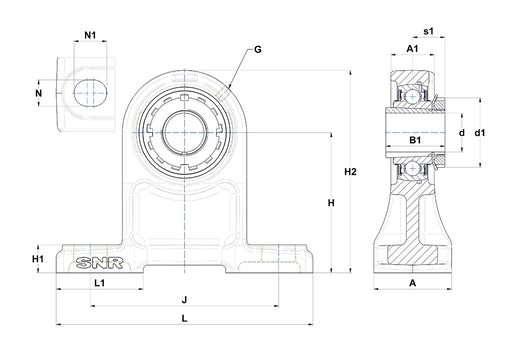

--- Dimensions
Shaft diameter 45mm
A 70mm
A1 36mm
B 31mm
d1 70mm
H 110mm
H1 22mm
H2 165mm
J 159mm
L 206mm
L1 65mm
N 20mm
N1 25mm
s1 27.5mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adaptor Sleeve H2310
Mass 3.73 kg
