SKU: UKEHE206H-SNR

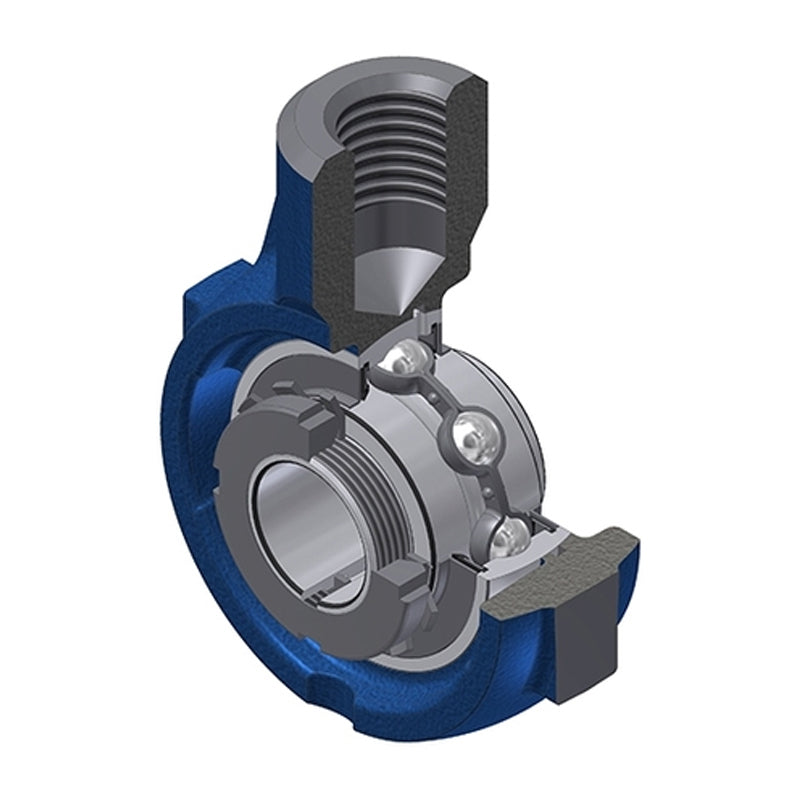

SNR UKEHE206H Metric Cast Iron Hanger Bearing Unit with 25mm Bore Insert and Adaptor Sleeve - Allow 2-3 Days
SNR UKEHE206H Metric Cast Iron Hanger Bearing Unit with 25mm Bore Insert and Adaptor Sleeve - Allow 2-3 Days
Regular price
£55.33
ex VAT£66.40inc. VAT
Regular price
Sale price
£55.33
ex VAT£66.40
inc. VAT
In stock
Price Break
3+
£54.78
4+
£52.56
9+
£51.46
19+
£49.80
49+
£48.69
99+
£45.92
499+
£38.73
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
UKEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and include a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- UKEHE
Technical
Technical

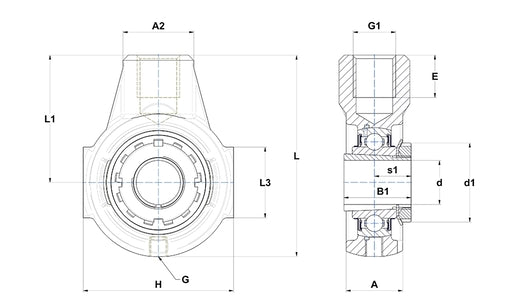

| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 32mm |
| A2 | 40mm |
| B1 | 38mm |
| d1 | 45mm |
| E | 24mm |
| H | 85mm |
| L | 114mm |
| L1 | 72mm |
| L3 | 40mm |
| s1 | 20.5mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2306 |
| Mass | 1.07 kg |
