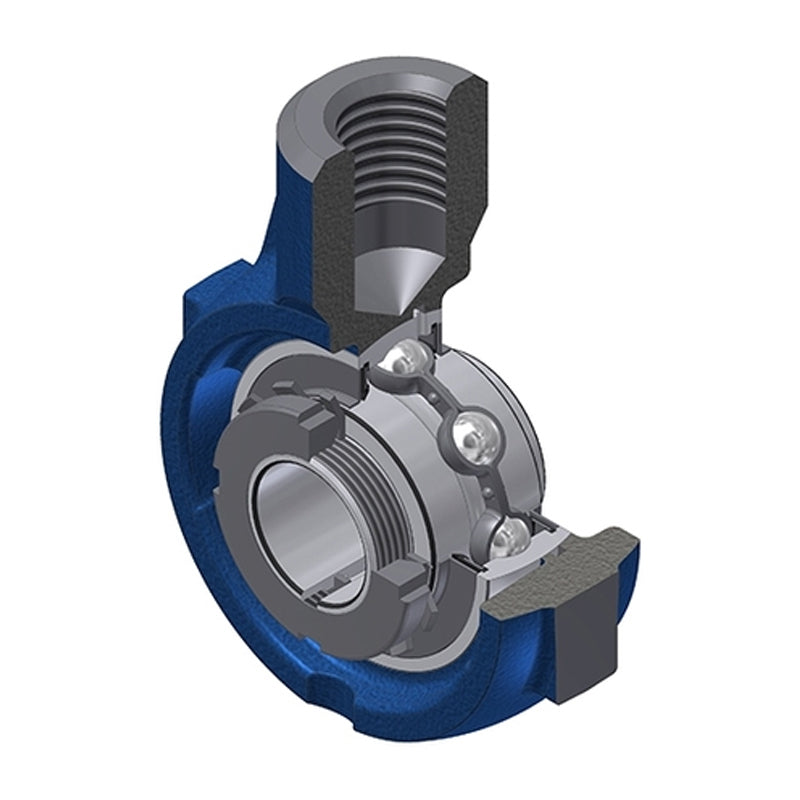

SNR UKEHE205H Metric Cast Iron Hanger Bearing Unit with 20mm Bore Insert and Adaptor Sleeve - Allow 2-3 Days
SNR UKEHE205H Metric Cast Iron Hanger Bearing Unit with 20mm Bore Insert and Adaptor Sleeve - Allow 2-3 Days
Regular price
£39.89
ex VAT£47.87inc. VAT
Regular price
Sale price
£39.89
ex VAT£47.87
inc. VAT
In stock
Price Break
3+
£39.49
4+
£37.90
9+
£37.10
19+
£35.90
49+
£35.10
99+
£33.11
499+
£27.92
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Share this product
Description
Description
UKEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and include a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- UKEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 20mm |
| A | 28mm |
| A2 | 35mm |
| B1 | 31mm |
| d1 | 38mm |
| E | 22mm |
| H | 70mm |
| L | 99mm |
| L1 | 64mm |
| L3 | 38mm |
| s1 | 18.5mm |
| G | R1/8″ |
| G1 | M20 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2305 |
| Mass | 0.74 kg |
