SKU: UKC212/HS2312
UKC212/HS2312 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 2-3/8 inch Bore Insert 5.1181 inch Outside Dia
UKC212/HS2312 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 2-3/8 inch Bore Insert 5.1181 inch Outside Dia
Regular price
£75.69
ex VAT£90.83inc. VAT
Regular price
Sale price
£75.69
ex VAT£90.83
inc. VAT
In stock
Price Break
10+
£67.36
19+
£63.58
29+
£62.82
39+
£62.07
49+
£61.31
74+
£60.55
99+
£56.77
199+
£56.01
249+
£55.25
499+
£54.50
999+
£52.98
Couldn't load pickup availability
Description
Description

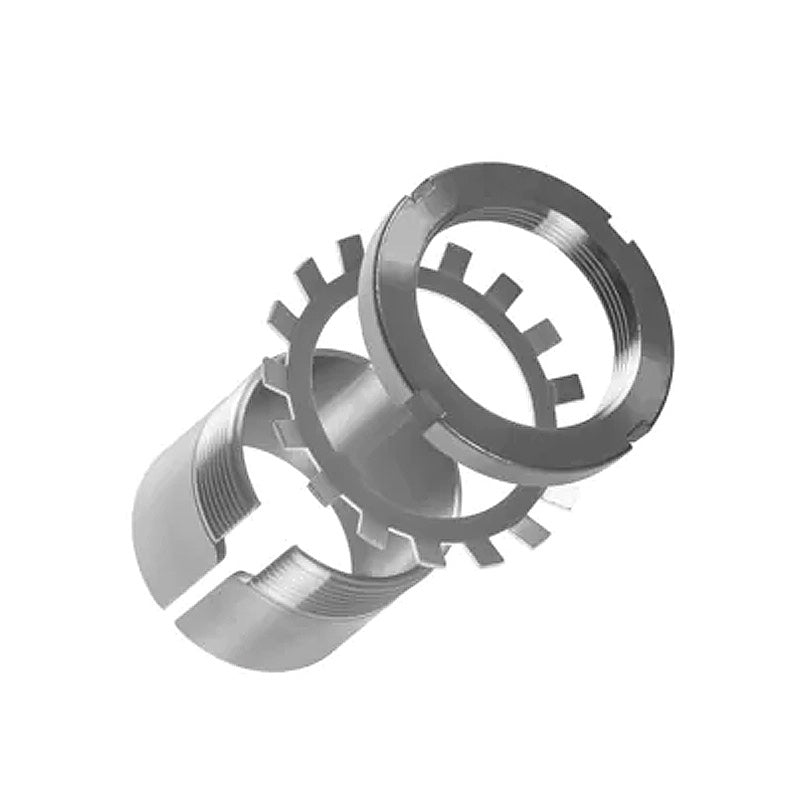

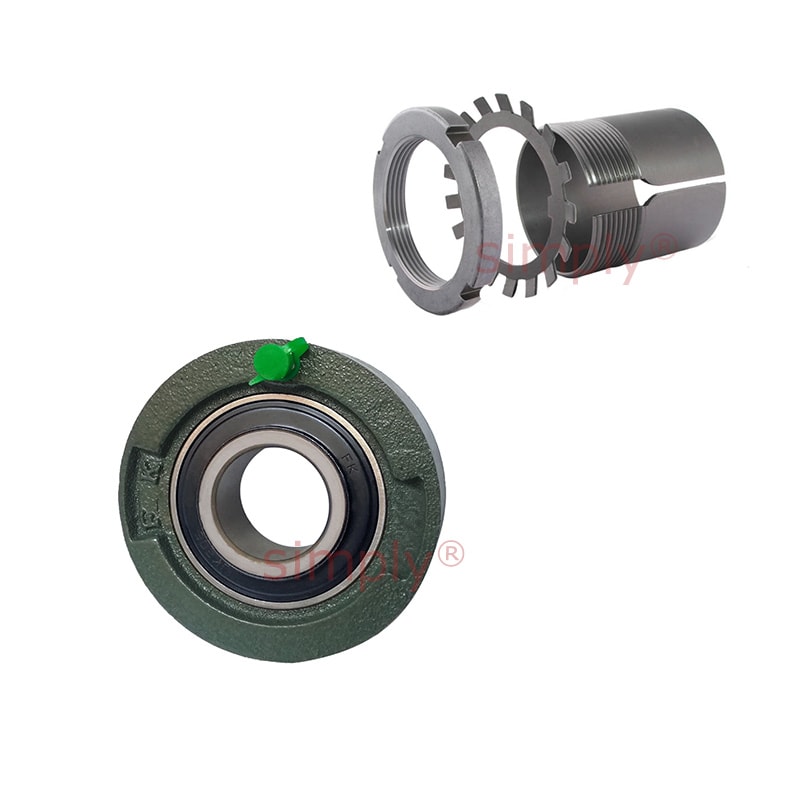

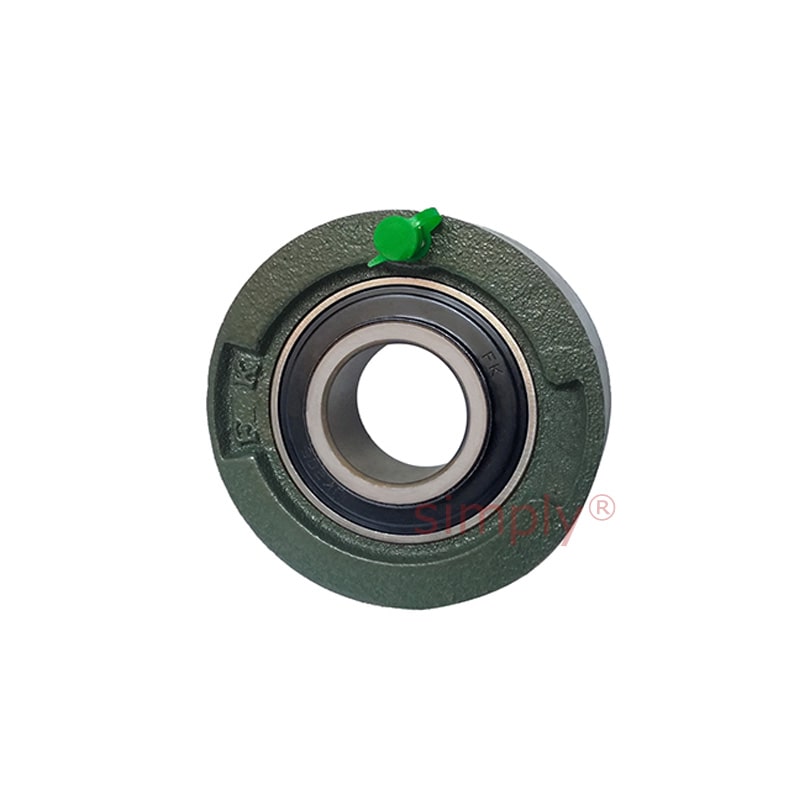

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Outside Diameter:
- 130mm = 5.1181 inch
- Style:
- UKC
Technical
Technical

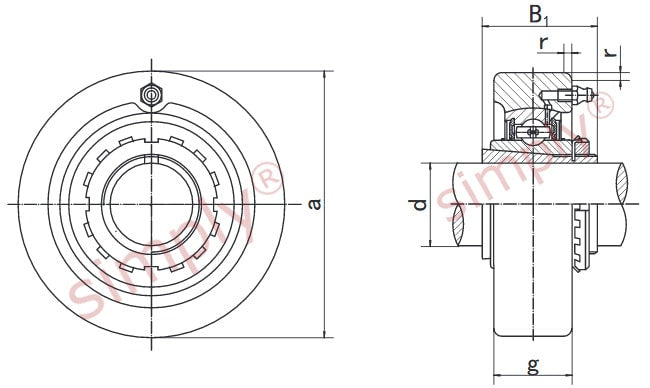

| Bore d | 2-3/8 inch |
|---|---|
| Outer Dia a | 5.1181 inch |
| g | 1-1/2 inch |
| r | 0.098 inch |
| B | 2.441 inch |
| Bearing No | UK212;HS2312 |
| Housing No | C212 |
