SKU: UKC207/H2307

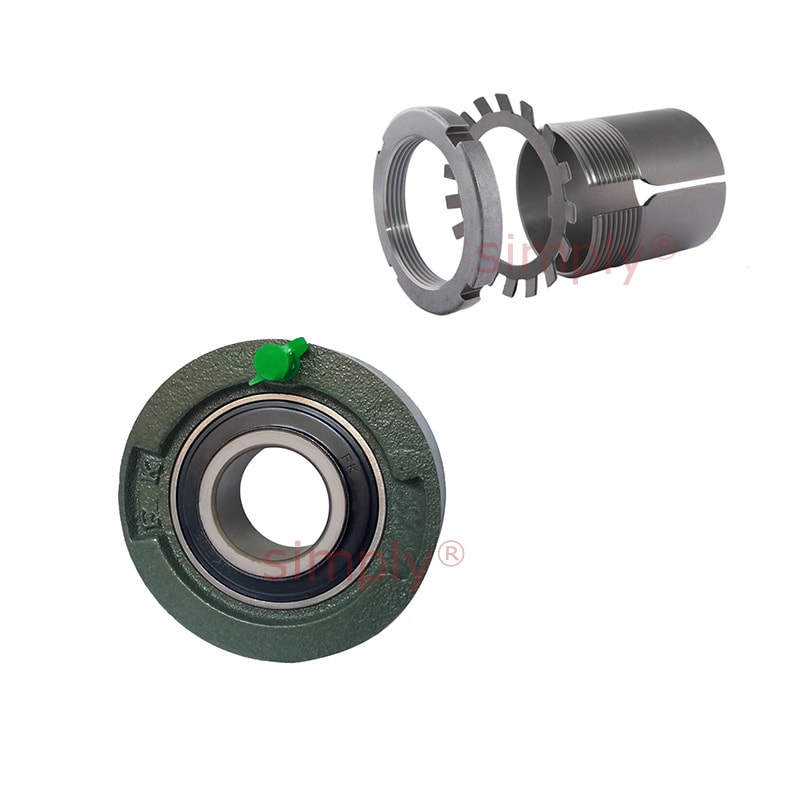

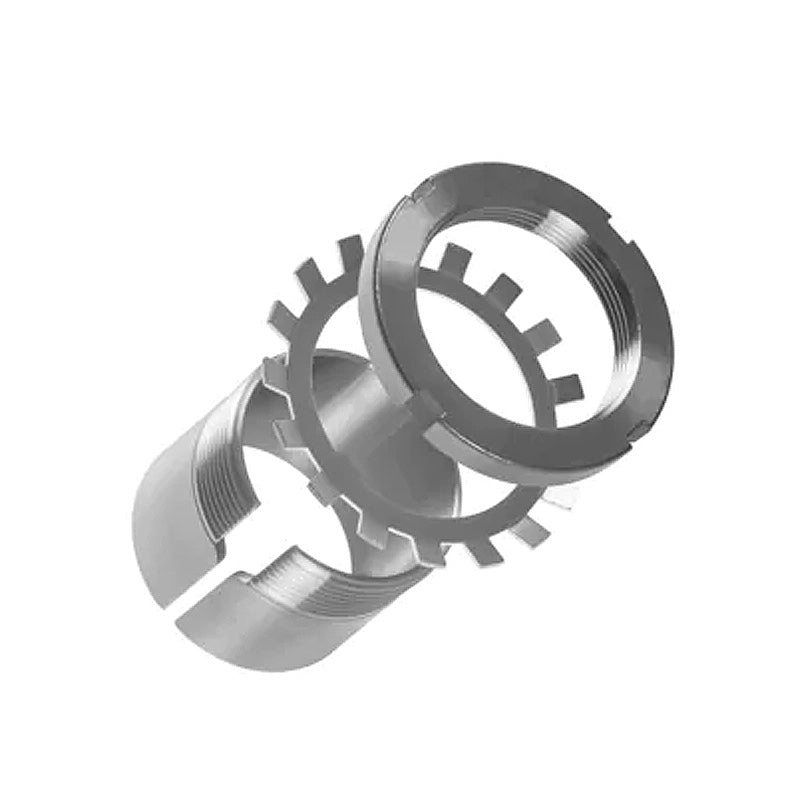

UKC207/H2307 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 30mm Bore Insert 90mm Outside Dia
UKC207/H2307 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 30mm Bore Insert 90mm Outside Dia
Regular price
£35.58
ex VAT£42.70inc. VAT
Regular price
Sale price
£35.58
ex VAT£42.70
inc. VAT
In stock
Price Break
10+
£31.67
19+
£29.89
29+
£29.53
39+
£29.18
49+
£28.82
74+
£28.46
99+
£26.69
199+
£26.33
249+
£25.97
499+
£25.62
999+
£24.91
Couldn't load pickup availability
Description
Description

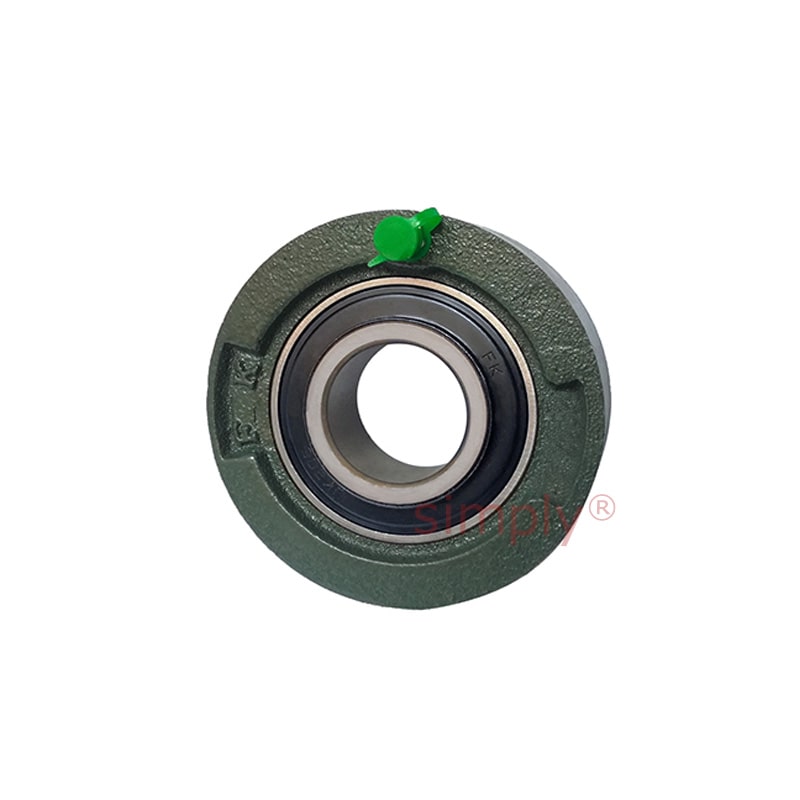

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 90mm
- Style:
- UKC
Technical
Technical
| Bore d | 30mm |
|---|---|
| Outer Dia a | 90mm |
| g | 28mm |
| r | 2mm |
| B | 43mm |
| Bearing No | UK207;H2307 |
| Housing No | C207 |
