SKU: UELT212D1-NTN

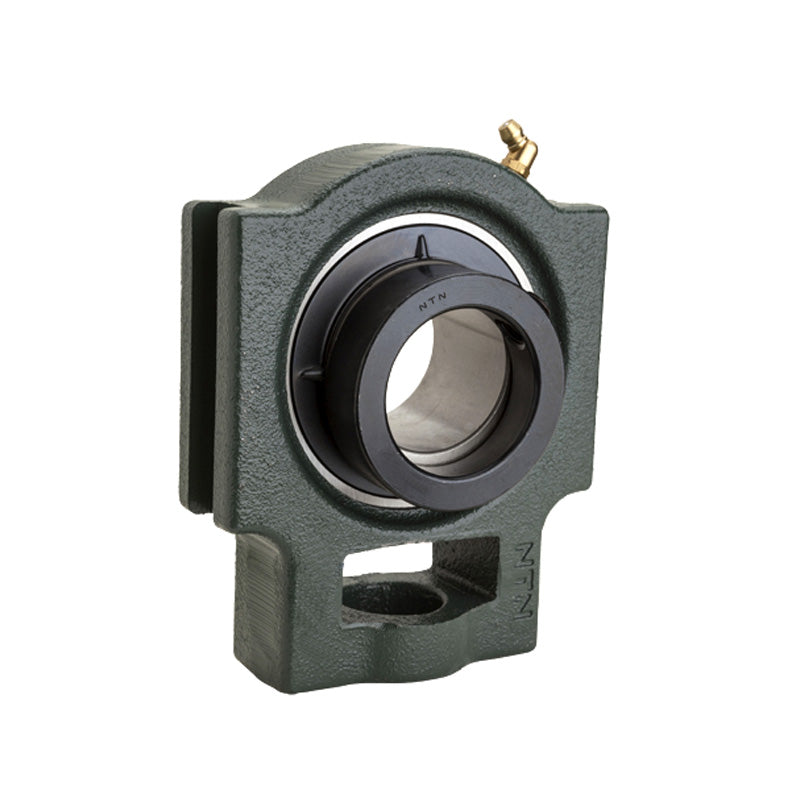

NTN UELT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
£78.66
ex VAT£94.39inc. VAT
Regular price
Sale price
£78.66
ex VAT£94.39
inc. VAT
In stock
Price Break
10+
£70.01
19+
£66.07
29+
£65.29
39+
£64.50
49+
£63.71
74+
£62.93
99+
£59.00
199+
£58.21
249+
£57.42
499+
£56.64
999+
£55.06
Couldn't load pickup availability
Description
Description
UELT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UELT
Technical
Technical
| Shaft diameter | 60mm |
|---|---|
| N<sub>1</sub> | 32mm |
| L<sub>2</sub> | 21mm |
| H<sub>2</sub> | 102mm |
| N<sub>2</sub> | 64mm |
| N | 35mm |
| L<sub>3</sub> | 102mm |
| A<sub>1</sub> | 22mm |
| H<sub>1</sub> | 130mm |
| H | 146mm |
| L | 194mm |
| A<sub>2</sub> | 42mm |
| A | 64mm |
| r | 75mm |
| L<sub>1</sub> | 119mm |
| B<sub>1</sub> | 77.8mm |
| S | 30.95mm |
| Mass | 5.2 kg |
