SKU: UELP211-203D1W3-NTN

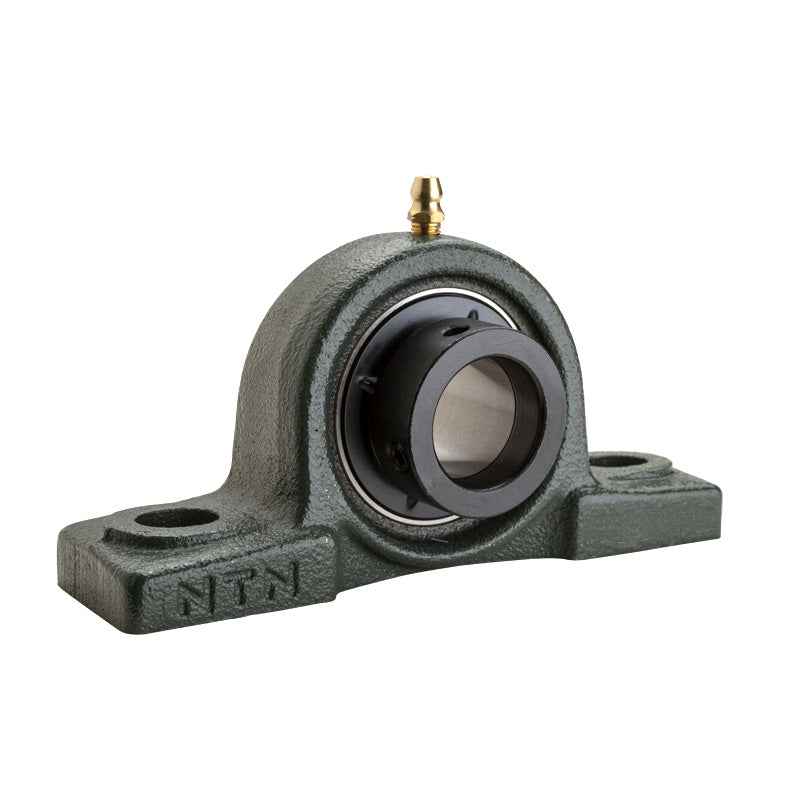

NTN UELP211-203D1W3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/16 inch Eccentric Collar Insert - Allow 2-3 Days
NTN UELP211-203D1W3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/16 inch Eccentric Collar Insert - Allow 2-3 Days
Regular price
£99.75
ex VAT£119.70inc. VAT
Regular price
Sale price
£99.75
ex VAT£119.70
inc. VAT
In stock
Price Break
5+
£98.75
10+
£94.76
20+
£92.77
50+
£89.78
100+
£87.78
500+
£82.79
1000+
£69.83
Couldn't load pickup availability
Description
Description
UELP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- UELP
- Bolt Hole Centres:
- 6-23/32 inch
Technical
Technical
| Shaft diameter | 2-3/16 inch |
|---|---|
| H | 2-1/2 inch |
| L | 8-5/8 inch |
| J | 6-23/32 inch |
| A | 2-3/8 inch |
| N | 25/32 inch |
| N<sub>1</sub> | 29/32 inch |
| H<sub>1</sub> | 29/32 inch |
| H<sub>2</sub> | 4-31/32 inch |
| L<sub>1</sub> | 2-9/16 inch |
| B<sub>1</sub> | 2.811 inch |
| S | 1.093 inch |
| Fixing bolt | 5/8 inch |
| Mass | 8.2 lbs |
