SKU: UELF211D1W3-NTN

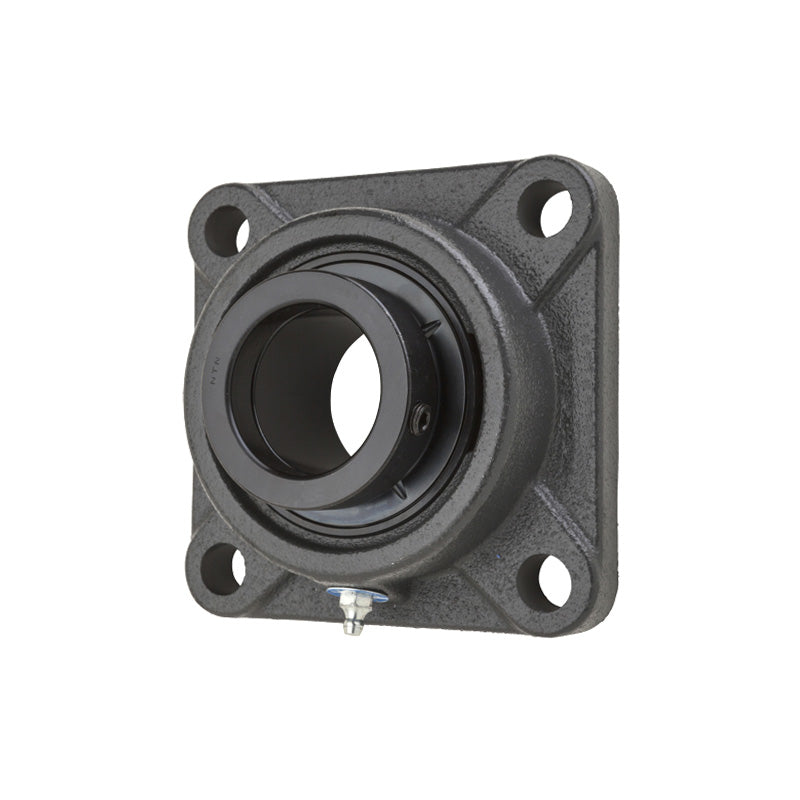

NTN UELF211D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN UELF211D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
£88.62
ex VAT£106.34inc. VAT
Regular price
Sale price
£88.62
ex VAT£106.34
inc. VAT
In stock
Price Break
5+
£87.73
10+
£84.19
20+
£82.42
50+
£79.76
100+
£77.99
500+
£73.55
1000+
£62.03
Couldn't load pickup availability
Description
Description
UELF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UELF
- Bolt Hole Centres:
- 130mm
Technical
Technical
| Shaft diameter | 55mm |
|---|---|
| L | 162mm |
| J | 130mm |
| A<sub>2</sub> | 25mm |
| A<sub>1</sub> | 18mm |
| A | 43mm |
| N | 19mm |
| A<sub>0</sub> | 68.65mm |
| B<sub>1</sub> | 71.4mm |
| S | 27.75mm |
| F min. | 73mm |
| Fixing bolt | M16 |
| Mass | 3.6 kg |
