SKU: UCX.15-48.TS.CHAL

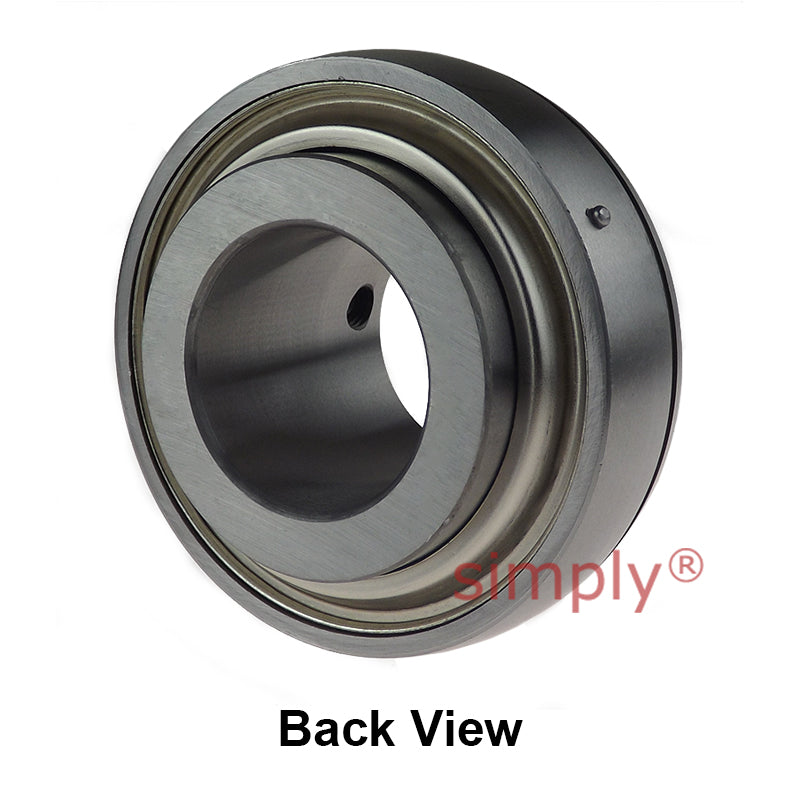

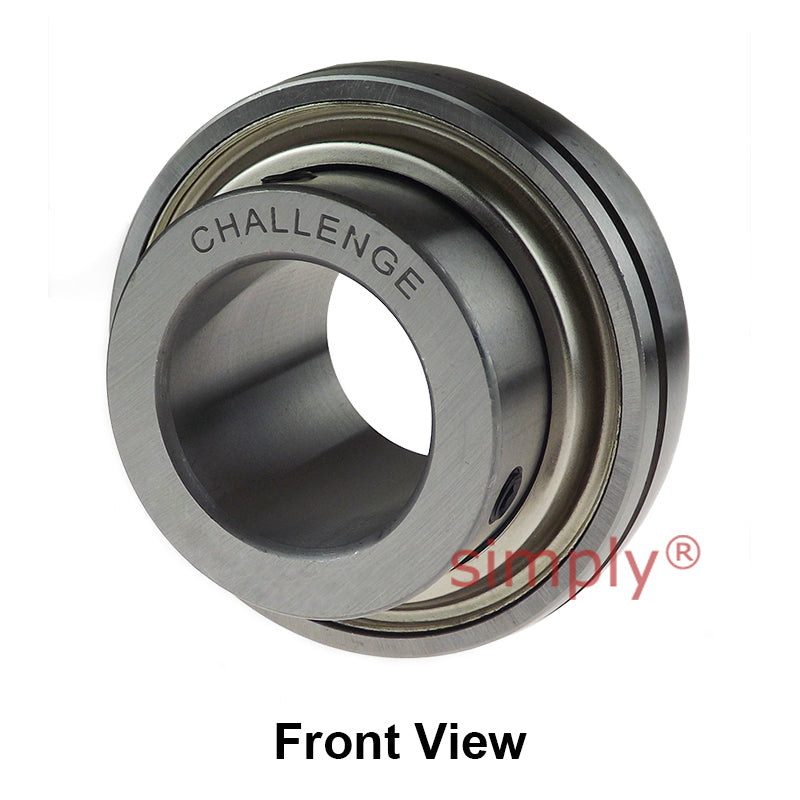

Challenge UCX15-48 Imperial Insert with Grub Screws with 3 inch Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UCX15-48 Imperial Insert with Grub Screws with 3 inch Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
£179.57
ex VAT£215.48inc. VAT
Regular price
Sale price
£179.57
ex VAT£215.48
inc. VAT
Equivalent to: UCX.15-48
In stock
Price Break
10+
£159.82
19+
£150.84
29+
£149.04
39+
£147.25
49+
£145.45
74+
£143.66
99+
£134.68
199+
£132.88
249+
£131.09
499+
£129.29
999+
£125.70
Couldn't load pickup availability
Description
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UCX.15-48
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- UCX
Technical
Technical
| Shaft Diameter d | 3 inch |
|---|---|
| Outside Diameter D | 140mm |
| Overall Width Bi | 82.6mm |
| Inner Race Width Be | 33mm |
| Back of Bearing to Centre Line n | 33.3mm |
| Front of Bearing to Centre Line m | 49.3mm |
| Dimension G | 12mm |
| Grub Screws x 2 | 7/16 - 24UNF inch |
| Load Rating (Dynamic) | 5700kg |
| Load Rating (Static) | 4550kg |
| Max Speed | 1200 rev/min |
| Working Temperature | -30°C to +120°C |
