SKU: UCX.05-16.TS.CHAL

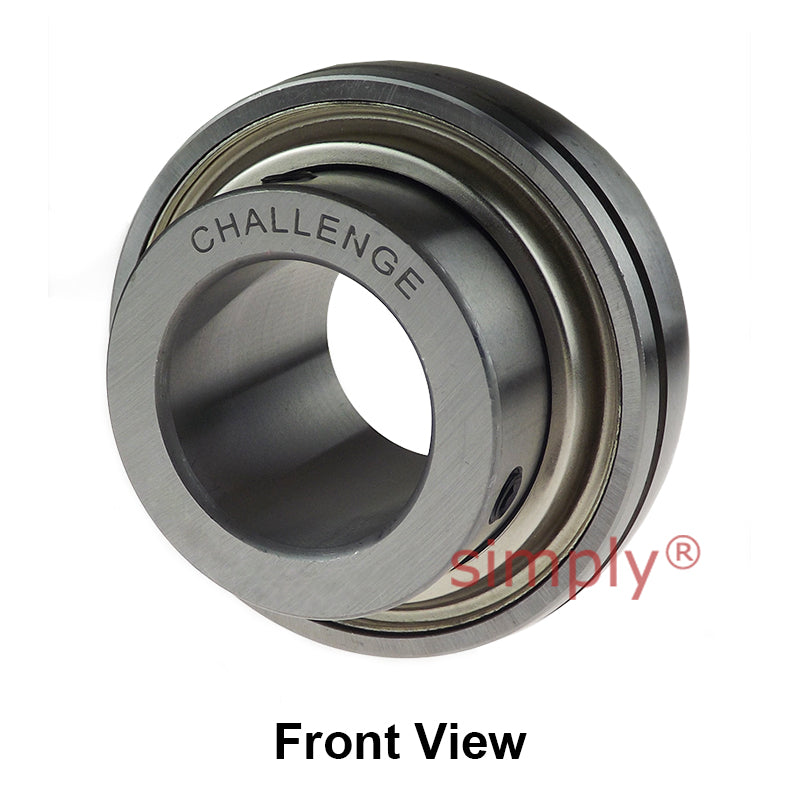

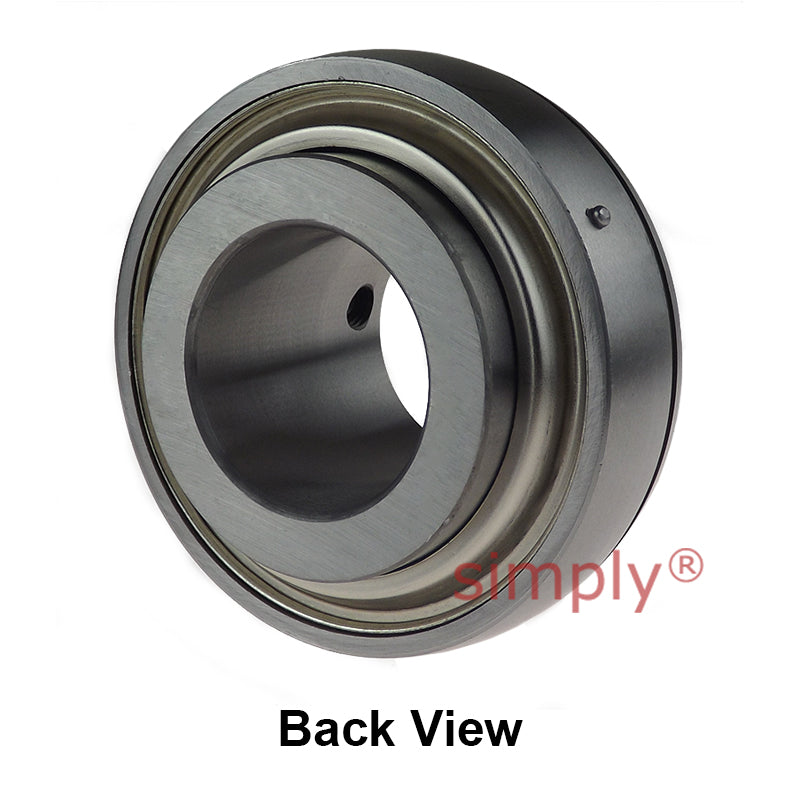

Challenge UCX05-16 Imperial Insert with Grub Screws with 1 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UCX05-16 Imperial Insert with Grub Screws with 1 inch Bore 62mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
£10.37
ex VAT£12.44inc. VAT
Regular price
Sale price
£10.37
ex VAT£12.44
inc. VAT
Equivalent to: UCX.05-16
In stock
Price Break
10+
£9.23
19+
£8.71
29+
£8.61
39+
£8.50
49+
£8.40
74+
£8.30
99+
£7.78
199+
£7.67
249+
£7.57
499+
£7.47
999+
£7.26
Couldn't load pickup availability
Description
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UCX.05-16
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- UCX
Technical
Technical
| Shaft Diameter d | 1 inch |
|---|---|
| Outside Diameter D | 62mm |
| Overall Width Bi | 38.1mm |
| Inner Race Width Be | 19mm |
| Back of Bearing to Centre Line n | 15.9mm |
| Front of Bearing to Centre Line m | 22.2mm |
| Dimension G | 5mm |
| Grub Screws x 2 | 1/4 - 28UNF inch |
| Load Rating (Dynamic) | 1520kg |
| Load Rating (Static) | 1020kg |
| Max Speed | 3400 rev/min |
| Working Temperature | -30°C to +120°C |
