SKU: UCW.203

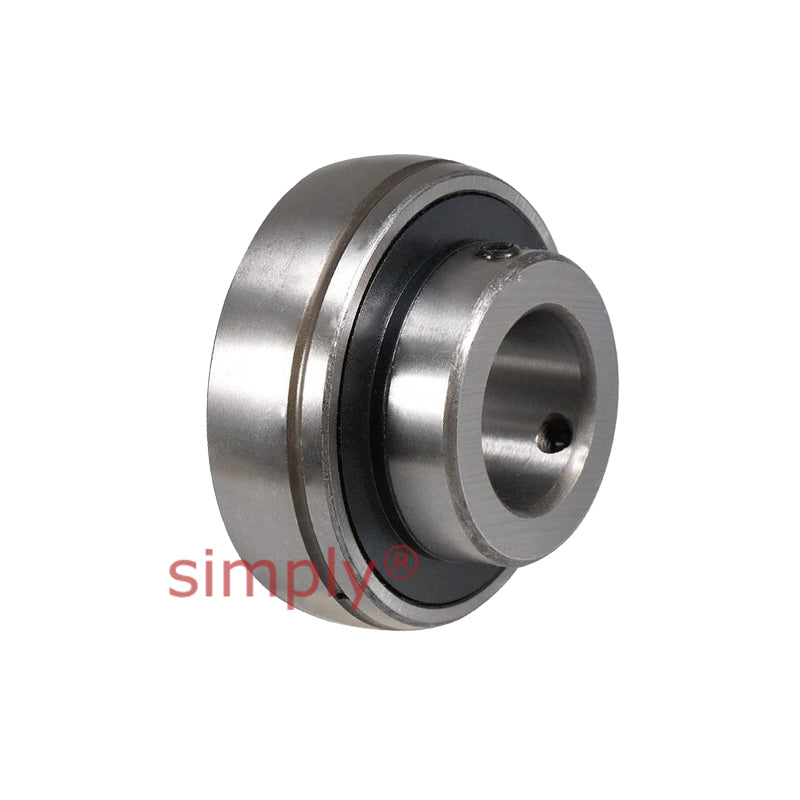

UCW203 Metric Bearing Insert with 17mm Bore 40mm Outside Dia
UCW203 Metric Bearing Insert with 17mm Bore 40mm Outside Dia
Regular price
£9.17
ex VAT£11.00inc. VAT
Regular price
Sale price
£9.17
ex VAT£11.00
inc. VAT
In stock
Price Break
3+
£8.16
4+
£7.70
9+
£7.61
19+
£7.52
49+
£7.43
99+
£7.34
499+
£6.88
999+
£6.79
1999+
£6.69
2999+
£6.60
4999+
£6.42
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Style:
- UCW
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| Bi | 27.4mm |
| Be | 14mm |
| n | 11.5mm |
| m | 15.9mm |
| G | 4.2mm |
| Grub screw | M5x0.8 |
| Weight | 0.1 kg |
| Dynamic load | 973 kgf |
| Static load | 487 kgf |
